Kombic 100 Surface Optic

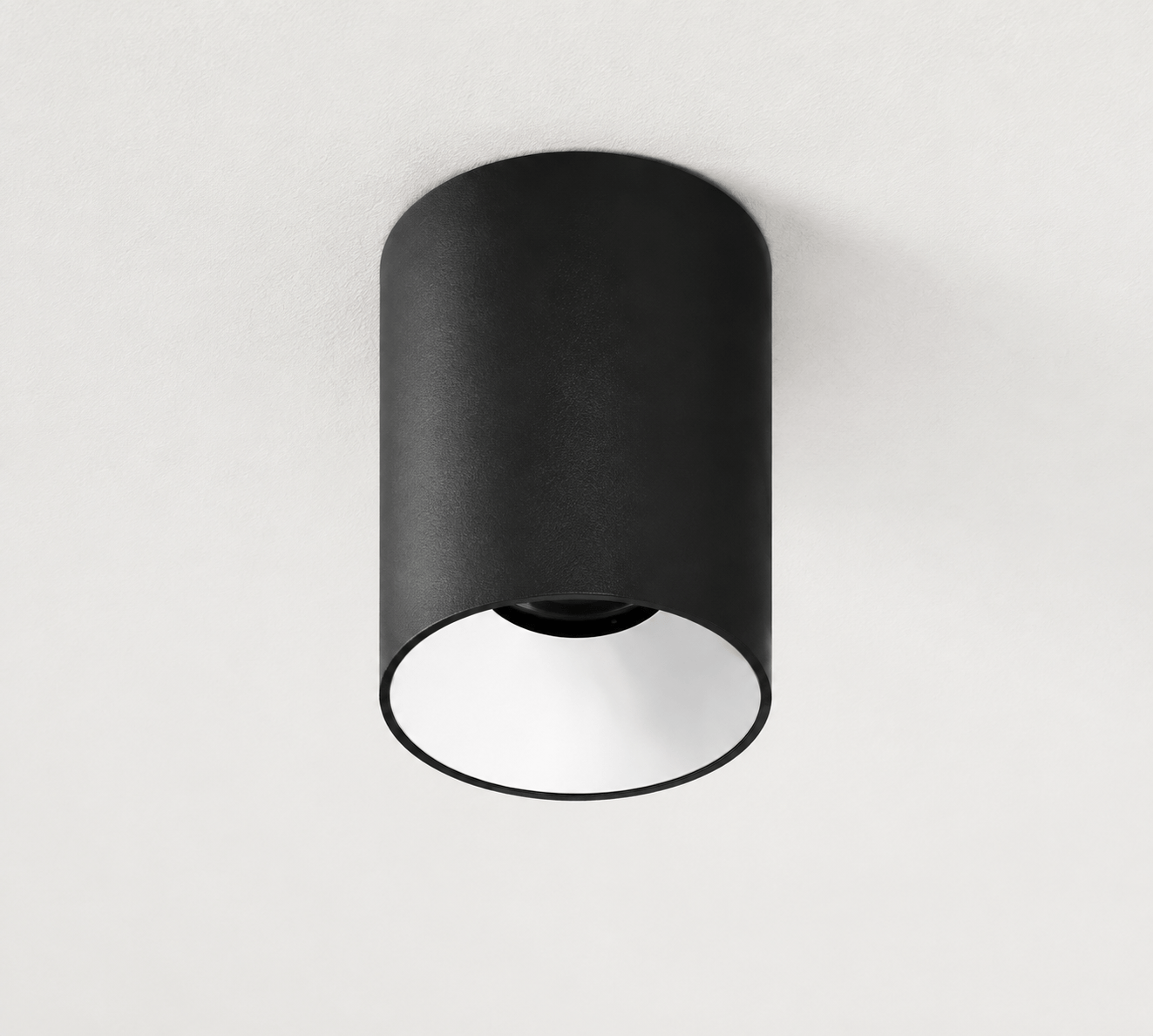

The KOMBIC 100 SF by LAMP is a versatile architectural downlight suitable for suspended or surface-mounted ceiling installation. Its clean cylindrical housing is manufactured from extruded aluminium and is available in black or white, with a selection of internal reflector finishes to complement different interior schemes.

The reflector is manufactured from recycled polycarbonate with a non-brominated, flame-retardant additive (R-PC FR WHITE TM), achieving a V-0 flammability classification in accordance with UL 94. A die-cast aluminium heat sink provides effective thermal management and supports consistent long-term performance.

The integrated COB LED is available in 2700K, 3000K and 4000K colour temperatures, with a choice of CRI 80 or CRI 90. Wide Flood optics deliver broad, controlled light distribution, making the luminaire suitable for hospitality, retail, commercial and communal spaces. Electronic control gear is included.

The KOMBIC 100 SF provides Class I electrical protection, an IP43 rating and Group 0 photobiological safety. Its rated lifetime is 50,000 hours to L80 B10.

Performance Data

Product code	Luminous flux (lm)	Correlated color temperature (K)	Color rendering index (CRI)	Unified glare rating (UGR)	Wired lighting control	IP Code	Luminaire shape	Length (mm)	Info
EV-K11SF1540WF927NBW	1500	2700	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF927NBW Kombic 100 Surface Optic EV-K11SF1540WF927NBW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2700 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF927NBB	1500	2700	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF927NBB Kombic 100 Surface Optic EV-K11SF1540WF927NBB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2700 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF927NMW	1500	2700	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF927NMW Kombic 100 Surface Optic EV-K11SF1540WF927NMW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2700 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF927NMB	1500	2700	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF927NMB Kombic 100 Surface Optic EV-K11SF1540WF927NMB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2700 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF927NWW	1500	2700	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF927NWW Kombic 100 Surface Optic EV-K11SF1540WF927NWW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2700 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF927NWB	1500	2700	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF927NWB Kombic 100 Surface Optic EV-K11SF1540WF927NWB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2700 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF930NBW	1500	3000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF930NBW Kombic 100 Surface Optic EV-K11SF1540WF930NBW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF930NBB	1500	3000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF930NBB Kombic 100 Surface Optic EV-K11SF1540WF930NBB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF930NMW	1500	3000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF930NMW Kombic 100 Surface Optic EV-K11SF1540WF930NMW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF930NMB	1500	3000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF930NMB Kombic 100 Surface Optic EV-K11SF1540WF930NMB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF930NWW	1500	3000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF930NWW Kombic 100 Surface Optic EV-K11SF1540WF930NWW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF930NWB	1500	3000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF930NWB Kombic 100 Surface Optic EV-K11SF1540WF930NWB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF940NBW	1500	4000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF940NBW Kombic 100 Surface Optic EV-K11SF1540WF940NBW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF940NBB	1500	4000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF940NBB Kombic 100 Surface Optic EV-K11SF1540WF940NBB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF940NMW	1500	4000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF940NMW Kombic 100 Surface Optic EV-K11SF1540WF940NMW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF940NMB	1500	4000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF940NMB Kombic 100 Surface Optic EV-K11SF1540WF940NMB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF940NWW	1500	4000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF940NWW Kombic 100 Surface Optic EV-K11SF1540WF940NWW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF1540WF940NWB	1500	4000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF1540WF940NWB Kombic 100 Surface Optic EV-K11SF1540WF940NWB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 1500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): N/A Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF927NBW	2000	2700	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF927NBW Kombic 100 Surface Optic EV-K11SF2040WF927NBW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2700 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF927NBB	2000	2700	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF927NBB Kombic 100 Surface Optic EV-K11SF2040WF927NBB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2700 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF927NMW	2000	2700	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF927NMW Kombic 100 Surface Optic EV-K11SF2040WF927NMW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2700 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF927NMB	2000	2700	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF927NMB Kombic 100 Surface Optic EV-K11SF2040WF927NMB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2700 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF927NWW	2000	2700	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF927NWW Kombic 100 Surface Optic EV-K11SF2040WF927NWW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2700 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF927NWB	2000	2700	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF927NWB Kombic 100 Surface Optic EV-K11SF2040WF927NWB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2700 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF930NBW	2000	3000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF930NBW Kombic 100 Surface Optic EV-K11SF2040WF930NBW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF930NBB	2000	3000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF930NBB Kombic 100 Surface Optic EV-K11SF2040WF930NBB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF930NMW	2000	3000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF930NMW Kombic 100 Surface Optic EV-K11SF2040WF930NMW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF930NMB	2000	3000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF930NMB Kombic 100 Surface Optic EV-K11SF2040WF930NMB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF930NWW	2000	3000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF930NWW Kombic 100 Surface Optic EV-K11SF2040WF930NWW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF930NWB	2000	3000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF930NWB Kombic 100 Surface Optic EV-K11SF2040WF930NWB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF940NBW	2000	4000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF940NBW Kombic 100 Surface Optic EV-K11SF2040WF940NBW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF940NBB	2000	4000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF940NBB Kombic 100 Surface Optic EV-K11SF2040WF940NBB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF940NMW	2000	4000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF940NMW Kombic 100 Surface Optic EV-K11SF2040WF940NMW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF940NMB	2000	4000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF940NMB Kombic 100 Surface Optic EV-K11SF2040WF940NMB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF940NWW	2000	4000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF940NWW Kombic 100 Surface Optic EV-K11SF2040WF940NWW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF940NWB	2000	4000	>90	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF940NWB Kombic 100 Surface Optic EV-K11SF2040WF940NWB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >90 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF827NBW	2000	2000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF827NBW Kombic 100 Surface Optic EV-K11SF2040WF827NBW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF827NBB	2000	2000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF827NBB Kombic 100 Surface Optic EV-K11SF2040WF827NBB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF827NMW	2000	2000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF827NMW Kombic 100 Surface Optic EV-K11SF2040WF827NMW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF827NMB	2000	2000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF827NMB Kombic 100 Surface Optic EV-K11SF2040WF827NMB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF827NWW	2000	2000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF827NWW Kombic 100 Surface Optic EV-K11SF2040WF827NWW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF827NWB	2000	2000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF827NWB Kombic 100 Surface Optic EV-K11SF2040WF827NWB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 2000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF830NBW	2000	3000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF830NBW Kombic 100 Surface Optic EV-K11SF2040WF830NBW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF830NBB	2000	3000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF830NBB Kombic 100 Surface Optic EV-K11SF2040WF830NBB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF830NMW	2000	3000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF830NMW Kombic 100 Surface Optic EV-K11SF2040WF830NMW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF830NMB	2000	3000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF830NMB Kombic 100 Surface Optic EV-K11SF2040WF830NMB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF830NWW	2000	3000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF830NWW Kombic 100 Surface Optic EV-K11SF2040WF830NWW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF830NWB	2000	3000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF830NWB Kombic 100 Surface Optic EV-K11SF2040WF830NWB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF840NBW	2000	4000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF840NBW Kombic 100 Surface Optic EV-K11SF2040WF840NBW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF840NBB	2000	4000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF840NBB Kombic 100 Surface Optic EV-K11SF2040WF840NBB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF840NMW	2000	4000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF840NMW Kombic 100 Surface Optic EV-K11SF2040WF840NMW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF840NMB	2000	4000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF840NMB Kombic 100 Surface Optic EV-K11SF2040WF840NMB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF840NWW	2000	4000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF840NWW Kombic 100 Surface Optic EV-K11SF2040WF840NWW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2040WF840NWB	2000	4000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2040WF840NWB Kombic 100 Surface Optic EV-K11SF2040WF840NWB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,3 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2540WF830NBW	2500	3000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2540WF830NBW Kombic 100 Surface Optic EV-K11SF2540WF830NBW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 19,7 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2540WF830NBB	2500	3000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2540WF830NBB Kombic 100 Surface Optic EV-K11SF2540WF830NBB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 19,7 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2540WF830NMW	2500	3000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2540WF830NMW Kombic 100 Surface Optic EV-K11SF2540WF830NMW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 19,7 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2540WF830NMB	2500	3000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2540WF830NMB Kombic 100 Surface Optic EV-K11SF2540WF830NMB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 19,7 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2540WF830NWW	2500	3000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2540WF830NWW Kombic 100 Surface Optic EV-K11SF2540WF830NWW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 19,7 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2540WF830NWB	2500	3000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2540WF830NWB Kombic 100 Surface Optic EV-K11SF2540WF830NWB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 3000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 19,7 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2540WF840NBW	2500	4000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2540WF840NBW Kombic 100 Surface Optic EV-K11SF2540WF840NBW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 19,7 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2540WF840NBB	2500	4000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2540WF840NBB Kombic 100 Surface Optic EV-K11SF2540WF840NBB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 19,7 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: black Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2540WF840NMW	2500	4000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2540WF840NMW Kombic 100 Surface Optic EV-K11SF2540WF840NMW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 19,7 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2540WF840NMB	2500	4000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2540WF840NMB Kombic 100 Surface Optic EV-K11SF2540WF840NMB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 19,7 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized matt Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2540WF840NWW	2500	4000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2540WF840NWW Kombic 100 Surface Optic EV-K11SF2540WF840NWW Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 19,7 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
EV-K11SF2540WF840NWB	2500	4000	>80	N/A	ON/OFF	IP43	cylindrical	N/A	EV-K11SF2540WF840NWB Kombic 100 Surface Optic EV-K11SF2540WF840NWB Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of aluminum extrusion available in black or white with a reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Featuring a range of interior reflector options. Heatsink made of die-cast aluminium. COB LED, colour temperatures from 2700 - 4000K with CRI90 or 80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. Luminaire type: Downlight Mounting type: surafce mounted Mounting location: ceiling Luminous flux (lm): 2500 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): 4000 Color rendering index (CRI): >80 Median useful life: Lifetime: 50.000 L70 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 19,7 Wired lighting control: ON/OFF Wireless lighting control: N/A IP Code: IP43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: white Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 180 Weight (kg): N/A Diameter (mm): 100 Adjustable: no Optics: WFL 50u00ba Downloads IES DownloadInstallation instructions Download
