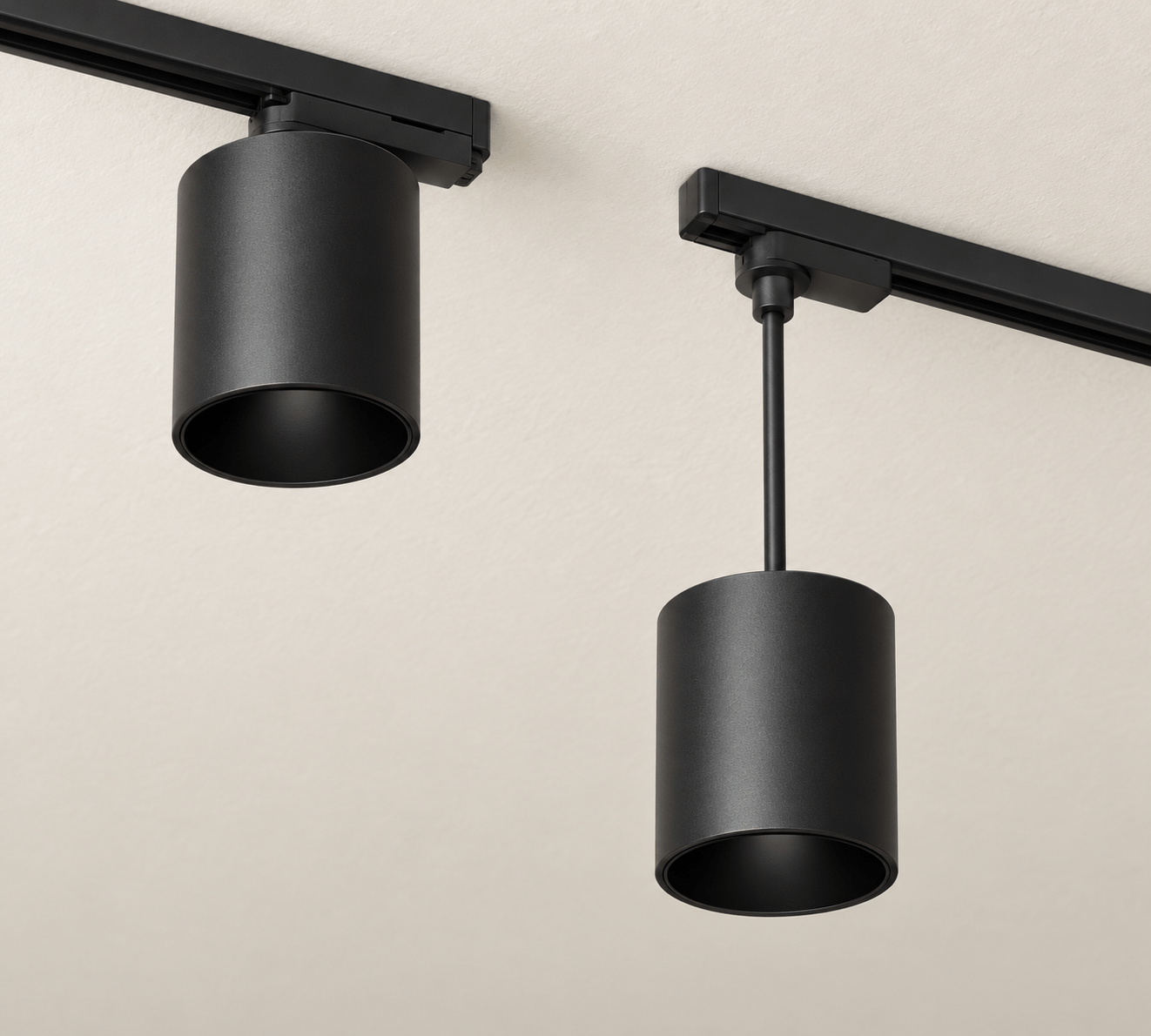

Kombic 100 Surface Track Opal TW

The Kombic 100 Surface Track Opal TW is a versatile LED spotlight delivering a luminous flux of 2000 lm. Its adaptable design and broad range of technical options make it suitable for a variety of retail, hospitality, commercial and architectural lighting applications.

The opal optical system produces soft, uniform illumination with enhanced visual comfort, while the Tunable White technology enables the colour temperature to be adjusted to suit different environments and requirements. High colour-rendering performance of CRI 90 ensures colours and finishes are presented accurately and naturally.

A range of faceted polycarbonate reflector options supports efficient, controlled light distribution and allows the optical performance to be tailored to the application. The luminaire is rated Protection Class I, providing a high level of electrical safety.

Performance Data

Product code	Luminous flux (lm)	Correlated color temperature (K)	Color rendering index (CRI)	Unified glare rating (UGR)	Wired lighting control	IP Code	Luminaire shape	Length (mm)		Info
EV-K11TK2040OP9TWDRW	2000	Tunable white	>90	N/A	DALI	IP 43	cylindrical	N/A	-	EV-K11TK2040OP9TWDRW Kombic 100 Surface Track Opal TW EV-K11TK2040OP9TWDRW Downlight with luminous flux of 2000lm. A wide range of technical parameters and appearance of the luminaire will ensure adaptation to various applications. a faceted range of polycarbonate reflector options guarantee optimal construction of the optical system and high efficiency. I protection class guarantees a high level of safety. Available with CRI 90. Luminaire type: track and spot Mounting type: surface mounting Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): Tunable white Color rendering index (CRI): >90 Median useful life: Lifetime: 70.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,7 Wired lighting control: DALI Wireless lighting control: N/A IP Code: IP 43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: bright Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 220 Weight (kg): N/A Diameter (mm): 100 Adjustable: yes Optics: opal Installation: track
EV-K11TK2040OP9TWDRB	2000	Tunable white	>90	N/A	DALI	IP 43	cylindrical	N/A	-	EV-K11TK2040OP9TWDRB Kombic 100 Surface Track Opal TW EV-K11TK2040OP9TWDRB Downlight with luminous flux of 2000lm. A wide range of technical parameters and appearance of the luminaire will ensure adaptation to various applications. a faceted range of polycarbonate reflector options guarantee optimal construction of the optical system and high efficiency. I protection class guarantees a high level of safety. Available with CRI 90. Luminaire type: track and spot Mounting type: surface mounting Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): Tunable white Color rendering index (CRI): >90 Median useful life: Lifetime: 70.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,7 Wired lighting control: DALI Wireless lighting control: N/A IP Code: IP 43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: bright Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 220 Weight (kg): N/A Diameter (mm): 100 Adjustable: yes Optics: opal Installation: track
EV-K11TK2040OP9TWDMW	2000	Tunable white	>90	N/A	DALI	IP 43	cylindrical	N/A	-	EV-K11TK2040OP9TWDMW Kombic 100 Surface Track Opal TW EV-K11TK2040OP9TWDMW Downlight with luminous flux of 2000lm. A wide range of technical parameters and appearance of the luminaire will ensure adaptation to various applications. a faceted range of polycarbonate reflector options guarantee optimal construction of the optical system and high efficiency. I protection class guarantees a high level of safety. Available with CRI 90. Luminaire type: track and spot Mounting type: surface mounting Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): Tunable white Color rendering index (CRI): >90 Median useful life: Lifetime: 70.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,7 Wired lighting control: DALI Wireless lighting control: N/A IP Code: IP 43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized metalic Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 220 Weight (kg): N/A Diameter (mm): 100 Adjustable: yes Optics: opal Installation: track
EV-K11TK2040OP9TWDMB	2000	Tunable white	>90	N/A	DALI	IP 43	cylindrical	N/A	-	EV-K11TK2040OP9TWDMB Kombic 100 Surface Track Opal TW EV-K11TK2040OP9TWDMB Downlight with luminous flux of 2000lm. A wide range of technical parameters and appearance of the luminaire will ensure adaptation to various applications. a faceted range of polycarbonate reflector options guarantee optimal construction of the optical system and high efficiency. I protection class guarantees a high level of safety. Available with CRI 90. Luminaire type: track and spot Mounting type: surface mounting Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): Tunable white Color rendering index (CRI): >90 Median useful life: Lifetime: 70.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,7 Wired lighting control: DALI Wireless lighting control: N/A IP Code: IP 43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized metalic Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 220 Weight (kg): N/A Diameter (mm): 100 Adjustable: yes Optics: opal Installation: track
EV-K11ST2040OP9TWDRW	2000	Tunable white	>90	N/A	DALI	IP 43	cylindrical	N/A	-	EV-K11ST2040OP9TWDRW Kombic 100 Surface Track Opal TW EV-K11ST2040OP9TWDRW Downlight with luminous flux of 2000lm. A wide range of technical parameters and appearance of the luminaire will ensure adaptation to various applications. a faceted range of polycarbonate reflector options guarantee optimal construction of the optical system and high efficiency. I protection class guarantees a high level of safety. Available with CRI 90. Luminaire type: track and spot Mounting type: surface mounting Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): Tunable white Color rendering index (CRI): >90 Median useful life: Lifetime: 70.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,7 Wired lighting control: DALI Wireless lighting control: N/A IP Code: IP 43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: bright Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 220 Weight (kg): N/A Diameter (mm): 100 Adjustable: yes Optics: opal Installation: sus. track
EV-K11ST2040OP9TWDRB	2000	Tunable white	>90	N/A	DALI	IP 43	cylindrical	N/A	-	EV-K11ST2040OP9TWDRB Kombic 100 Surface Track Opal TW EV-K11ST2040OP9TWDRB Downlight with luminous flux of 2000lm. A wide range of technical parameters and appearance of the luminaire will ensure adaptation to various applications. a faceted range of polycarbonate reflector options guarantee optimal construction of the optical system and high efficiency. I protection class guarantees a high level of safety. Available with CRI 90. Luminaire type: track and spot Mounting type: surface mounting Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): Tunable white Color rendering index (CRI): >90 Median useful life: Lifetime: 70.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,7 Wired lighting control: DALI Wireless lighting control: N/A IP Code: IP 43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: bright Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 220 Weight (kg): N/A Diameter (mm): 100 Adjustable: yes Optics: opal Installation: sus. track
EV-K11ST2040OP9TWDMW	2000	Tunable white	>90	N/A	DALI	IP 43	cylindrical	N/A	-	EV-K11ST2040OP9TWDMW Kombic 100 Surface Track Opal TW EV-K11ST2040OP9TWDMW Downlight with luminous flux of 2000lm. A wide range of technical parameters and appearance of the luminaire will ensure adaptation to various applications. a faceted range of polycarbonate reflector options guarantee optimal construction of the optical system and high efficiency. I protection class guarantees a high level of safety. Available with CRI 90. Luminaire type: track and spot Mounting type: surface mounting Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): Tunable white Color rendering index (CRI): >90 Median useful life: Lifetime: 70.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: white 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,7 Wired lighting control: DALI Wireless lighting control: N/A IP Code: IP 43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized metalic Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 220 Weight (kg): N/A Diameter (mm): 100 Adjustable: yes Optics: opal Installation: sus. track
EV-K11ST2040OP9TWDMB	2000	Tunable white	>90	N/A	DALI	IP 43	cylindrical	N/A	-	EV-K11ST2040OP9TWDMB Kombic 100 Surface Track Opal TW EV-K11ST2040OP9TWDMB Downlight with luminous flux of 2000lm. A wide range of technical parameters and appearance of the luminaire will ensure adaptation to various applications. a faceted range of polycarbonate reflector options guarantee optimal construction of the optical system and high efficiency. I protection class guarantees a high level of safety. Available with CRI 90. Luminaire type: track and spot Mounting type: surface mounting Mounting location: ceiling Luminous flux (lm): 2000 Maximum luminous efficacy (lm/W): N/A Correlated color temperature (K): Tunable white Color rendering index (CRI): >90 Median useful life: Lifetime: 70.000 L80 B10 Standard Deviation of Color Matching (SDCM): N/A Luminous intensity distribution direction: N/A Beam angle: N/A Luminous intensity distribution: N/A Colour: black 02 Luminous intensity distribution geometry: N/A Luminous intensity distribution: N/A Unified glare rating (UGR): N/A Angle 65° luminance: N/A Voltage (V AC): 230 Power (W): 20,7 Wired lighting control: DALI Wireless lighting control: N/A IP Code: IP 43 IK Code: N/A IEC protection class: I Diffuser material: N/A Reflector material: polycarbonate Reflector Finish: metalized metalic Housing material: aluminium Luminaire shape: cylindrical Permissible ambient temperature range: from 0u00c2u00b0C to 25u00c2u00b0C Width (mm): N/A Length (mm): N/A Height (mm): 220 Weight (kg): N/A Diameter (mm): 100 Adjustable: yes Optics: opal Installation: sus. track
