| Product code | Luminous flux (lm) | Correlated color temperature (K) | Color rendering index (CRI) | Unified glare rating (UGR) | Wired lighting control | IP Code | Luminaire shape | Length (mm) | | Info | Add |
|---|
| EV-K11TK2040OP830NRW | 2000 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |

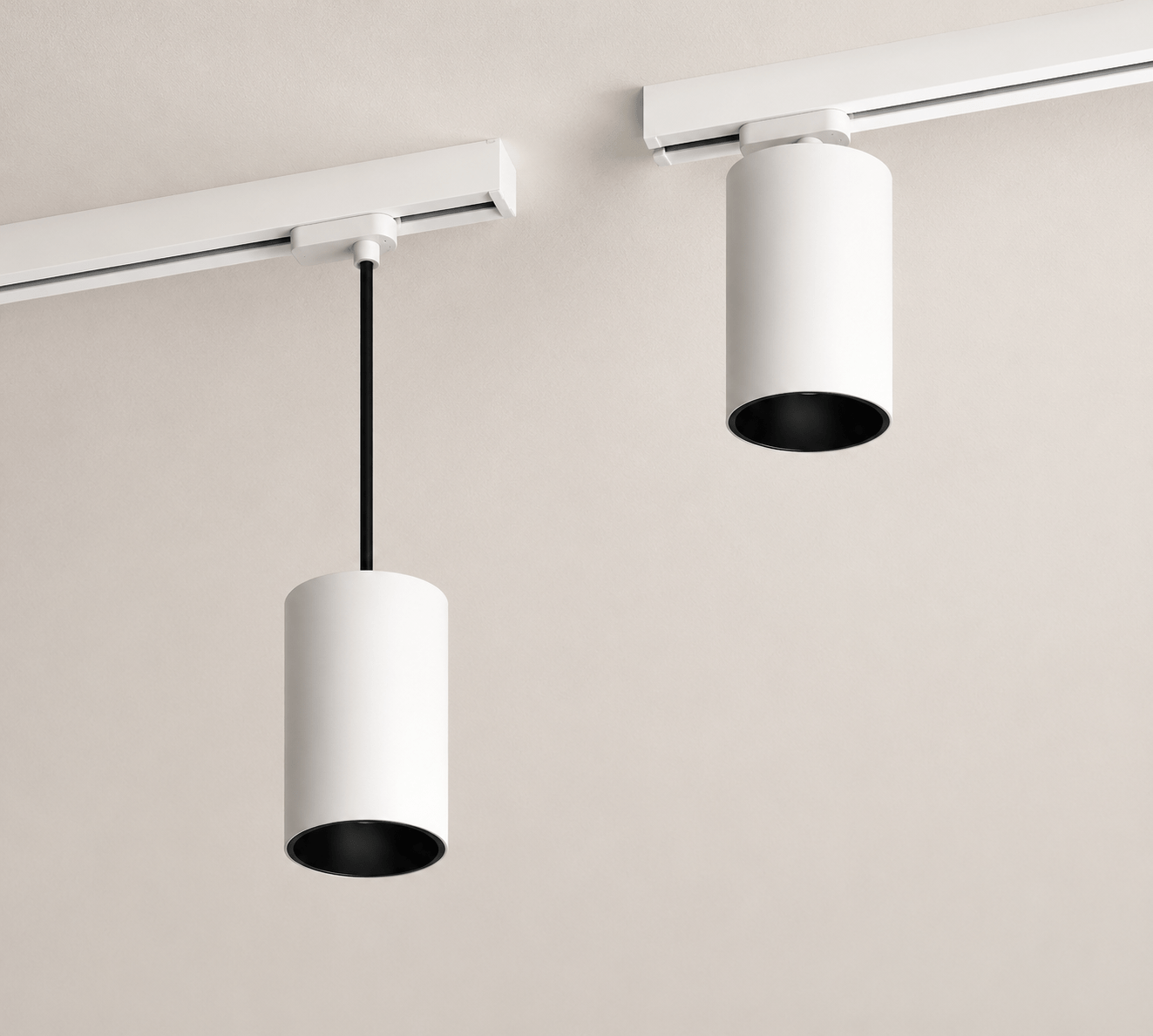

| EV-K11TK2040OP830NRW| Photo | .jpg) |
|---|
| Product code | EV-K11TK2040OP830NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP830NMW | 2000 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP830NMW| Photo | |
|---|
| Product code | EV-K11TK2040OP830NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP830NWW | 2000 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP830NWW| Photo | |
|---|
| Product code | EV-K11TK2040OP830NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP830NRB | 2000 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP830NRB| Photo | |
|---|
| Product code | EV-K11TK2040OP830NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP830NMB | 2000 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP830NMB| Photo | |
|---|
| Product code | EV-K11TK2040OP830NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP830NWB | 2000 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP830NWB| Photo | |
|---|
| Product code | EV-K11TK2040OP830NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP840NRW | 2000 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP840NRW| Photo | |
|---|
| Product code | EV-K11TK2040OP840NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP840NMW | 2000 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP840NMW| Photo | |
|---|
| Product code | EV-K11TK2040OP840NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|

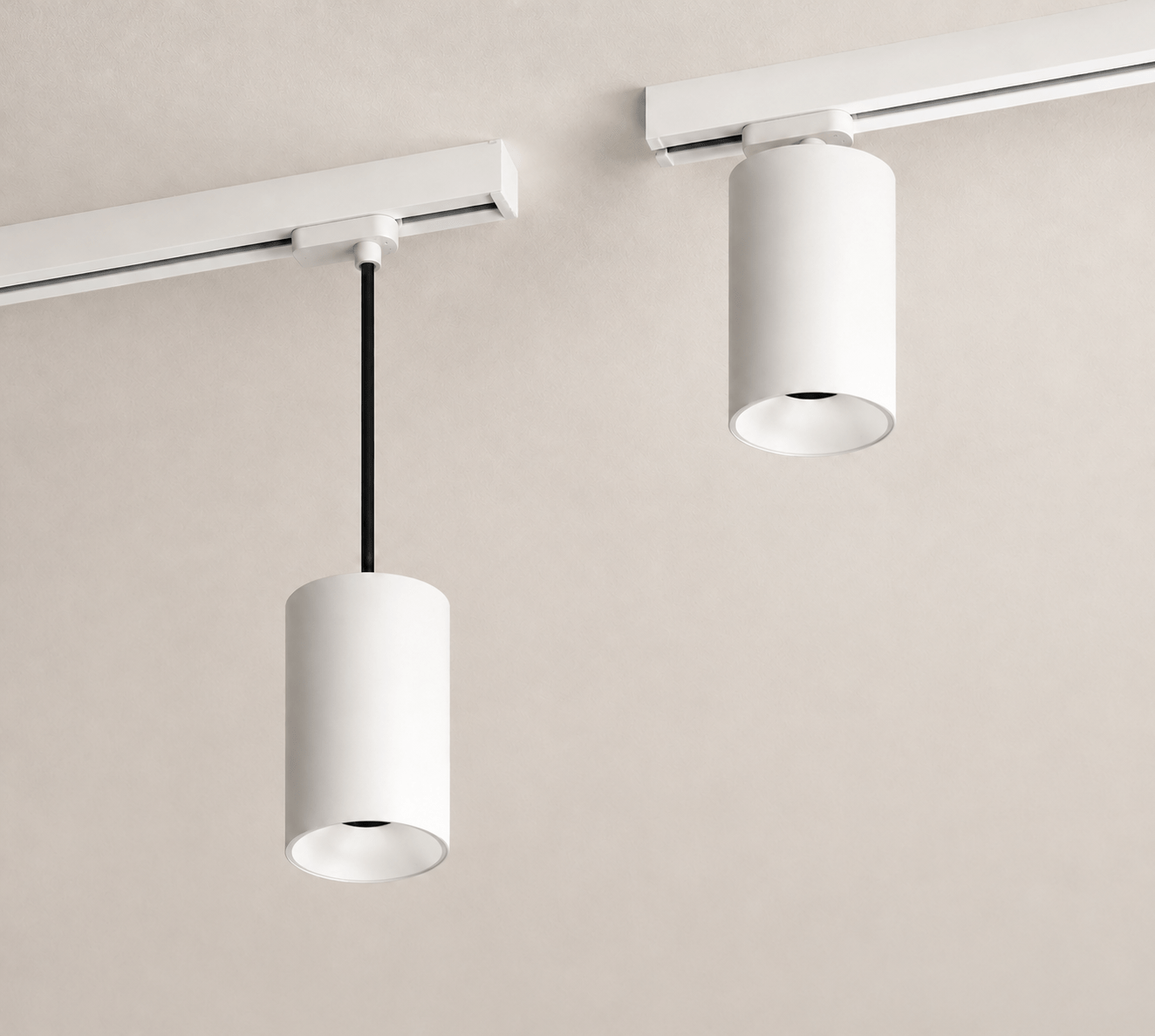

| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP840NWW | 2000 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP840NWW| Photo | |
|---|
| Product code | EV-K11TK2040OP840NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP840NRB | 2000 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP840NRB| Photo | |
|---|
| Product code | EV-K11TK2040OP840NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP840NMB | 2000 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP840NMB| Photo | |
|---|
| Product code | EV-K11TK2040OP840NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP840NWB | 2000 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP840NWB| Photo | |
|---|
| Product code | EV-K11TK2040OP840NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP930NRW | 2000 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP930NRW| Photo | |
|---|
| Product code | EV-K11TK2040OP930NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP930NMW | 2000 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP930NMW| Photo | |
|---|
| Product code | EV-K11TK2040OP930NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP930NWW | 2000 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP930NWW| Photo | |
|---|
| Product code | EV-K11TK2040OP930NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP930NRB | 2000 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP930NRB| Photo | |
|---|
| Product code | EV-K11TK2040OP930NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP930NMB | 2000 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP930NMB| Photo | |
|---|
| Product code | EV-K11TK2040OP930NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP930NWB | 2000 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP930NWB| Photo | |
|---|
| Product code | EV-K11TK2040OP930NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP940NRW | 2000 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP940NRW| Photo | |
|---|
| Product code | EV-K11TK2040OP940NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP940NMW | 2000 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP940NMW| Photo | |
|---|
| Product code | EV-K11TK2040OP940NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP940NWW | 2000 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP940NWW| Photo | |
|---|
| Product code | EV-K11TK2040OP940NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP940NRB | 2000 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP940NRB| Photo | |
|---|
| Product code | EV-K11TK2040OP940NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP940NMB | 2000 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP940NMB| Photo | |
|---|
| Product code | EV-K11TK2040OP940NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2040OP940NWB | 2000 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2040OP940NWB| Photo | |
|---|
| Product code | EV-K11TK2040OP940NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP830NRW | 2500 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP830NRW| Photo | |
|---|
| Product code | EV-K11TK2540OP830NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP830NMW | 2500 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP830NMW| Photo | |
|---|
| Product code | EV-K11TK2540OP830NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP830NWW | 2500 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP830NWW| Photo | |
|---|
| Product code | EV-K11TK2540OP830NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP830NRB | 2500 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP830NRB| Photo | |
|---|
| Product code | EV-K11TK2540OP830NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP830NMB | 2500 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP830NMB| Photo | |
|---|
| Product code | EV-K11TK2540OP830NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP830NWB | 2500 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP830NWB| Photo | |
|---|
| Product code | EV-K11TK2540OP830NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP840NRW | 2500 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP840NRW| Photo | |
|---|
| Product code | EV-K11TK2540OP840NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP840NMW | 2500 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP840NMW| Photo | |
|---|
| Product code | EV-K11TK2540OP840NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP840NWW | 2500 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP840NWW| Photo | |
|---|
| Product code | EV-K11TK2540OP840NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP840NRB | 2500 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP840NRB| Photo | |
|---|
| Product code | EV-K11TK2540OP840NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP840NMB | 2500 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP840NMB| Photo | |
|---|
| Product code | EV-K11TK2540OP840NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP840NWB | 2500 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP840NWB| Photo | |
|---|
| Product code | EV-K11TK2540OP840NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP930NRW | 2500 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP930NRW| Photo | |
|---|
| Product code | EV-K11TK2540OP930NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP930NMW | 2500 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP930NMW| Photo | |
|---|
| Product code | EV-K11TK2540OP930NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP930NWW | 2500 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP930NWW| Photo | |
|---|
| Product code | EV-K11TK2540OP930NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP930NRB | 2500 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP930NRB| Photo | |
|---|
| Product code | EV-K11TK2540OP930NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP930NMB | 2500 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP930NMB| Photo | |
|---|
| Product code | EV-K11TK2540OP930NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP930NWB | 2500 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP930NWB| Photo | |
|---|
| Product code | EV-K11TK2540OP930NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP940NRW | 2500 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP940NRW| Photo | |
|---|
| Product code | EV-K11TK2540OP940NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP940NMW | 2500 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP940NMW| Photo | |
|---|
| Product code | EV-K11TK2540OP940NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP940NWW | 2500 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP940NWW| Photo | |
|---|
| Product code | EV-K11TK2540OP940NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP940NRB | 2500 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP940NRB| Photo | |
|---|
| Product code | EV-K11TK2540OP940NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP940NMB | 2500 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP940NMB| Photo | |
|---|
| Product code | EV-K11TK2540OP940NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11TK2540OP940NWB | 2500 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11TK2540OP940NWB| Photo | |
|---|
| Product code | EV-K11TK2540OP940NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | track |
|---|
| |
| EV-K11ST2040OP830NRW | 2000 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP830NRW| Photo | |
|---|
| Product code | EV-K11ST2040OP830NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP830NMW | 2000 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP830NMW| Photo | |
|---|
| Product code | EV-K11ST2040OP830NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP830NWW | 2000 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP830NWW| Photo | |
|---|
| Product code | EV-K11ST2040OP830NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP830NRB | 2000 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP830NRB| Photo | |
|---|
| Product code | EV-K11ST2040OP830NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP830NMB | 2000 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP830NMB| Photo | |
|---|
| Product code | EV-K11ST2040OP830NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP830NWB | 2000 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP830NWB| Photo | |
|---|
| Product code | EV-K11ST2040OP830NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP840NRW | 2000 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP840NRW| Photo | |
|---|
| Product code | EV-K11ST2040OP840NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP840NMW | 2000 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP840NMW| Photo | |
|---|
| Product code | EV-K11ST2040OP840NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP840NWW | 2000 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP840NWW| Photo | |
|---|
| Product code | EV-K11ST2040OP840NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP840NRB | 2000 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP840NRB| Photo | |
|---|
| Product code | EV-K11ST2040OP840NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP840NMB | 2000 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP840NMB| Photo | |
|---|
| Product code | EV-K11ST2040OP840NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP840NWB | 2000 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP840NWB| Photo | |
|---|
| Product code | EV-K11ST2040OP840NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP930NRW | 2000 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP930NRW| Photo | |
|---|
| Product code | EV-K11ST2040OP930NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP930NMW | 2000 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP930NMW| Photo | |
|---|
| Product code | EV-K11ST2040OP930NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP930NWW | 2000 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP930NWW| Photo | |
|---|
| Product code | EV-K11ST2040OP930NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP930NRB | 2000 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP930NRB| Photo | |
|---|
| Product code | EV-K11ST2040OP930NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP930NMB | 2000 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP930NMB| Photo | |
|---|
| Product code | EV-K11ST2040OP930NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP930NWB | 2000 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP930NWB| Photo | |
|---|
| Product code | EV-K11ST2040OP930NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP940NRW | 2000 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP940NRW| Photo | |
|---|
| Product code | EV-K11ST2040OP940NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP940NMW | 2000 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP940NMW| Photo | |
|---|
| Product code | EV-K11ST2040OP940NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP940NWW | 2000 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP940NWW| Photo | |
|---|
| Product code | EV-K11ST2040OP940NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP940NRB | 2000 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP940NRB| Photo | |
|---|
| Product code | EV-K11ST2040OP940NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP940NMB | 2000 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP940NMB| Photo | |
|---|
| Product code | EV-K11ST2040OP940NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2040OP940NWB | 2000 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2040OP940NWB| Photo | |
|---|
| Product code | EV-K11ST2040OP940NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2000 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 13,7 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP830NRW | 2500 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP830NRW| Photo | |
|---|
| Product code | EV-K11ST2540OP830NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP830NMW | 2500 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP830NMW| Photo | |
|---|
| Product code | EV-K11ST2540OP830NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP830NWW | 2500 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP830NWW| Photo | |
|---|
| Product code | EV-K11ST2540OP830NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP830NRB | 2500 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP830NRB| Photo | |
|---|
| Product code | EV-K11ST2540OP830NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP830NMB | 2500 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP830NMB| Photo | |
|---|
| Product code | EV-K11ST2540OP830NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP830NWB | 2500 | 3000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP830NWB| Photo | |
|---|
| Product code | EV-K11ST2540OP830NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP840NRW | 2500 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP840NRW| Photo | |
|---|
| Product code | EV-K11ST2540OP840NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP840NMW | 2500 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP840NMW| Photo | |
|---|
| Product code | EV-K11ST2540OP840NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP840NWW | 2500 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP840NWW| Photo | |
|---|
| Product code | EV-K11ST2540OP840NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP840NRB | 2500 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP840NRB| Photo | |
|---|
| Product code | EV-K11ST2540OP840NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP840NMB | 2500 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP840NMB| Photo | |
|---|
| Product code | EV-K11ST2540OP840NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP840NWB | 2500 | 4000 | >80 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP840NWB| Photo | |
|---|
| Product code | EV-K11ST2540OP840NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >80 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP930NRW | 2500 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP930NRW| Photo | |
|---|
| Product code | EV-K11ST2540OP930NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP930NMW | 2500 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP930NMW| Photo | |
|---|
| Product code | EV-K11ST2540OP930NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP930NWW | 2500 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP930NWW| Photo | |
|---|
| Product code | EV-K11ST2540OP930NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP930NRB | 2500 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP930NRB| Photo | |
|---|
| Product code | EV-K11ST2540OP930NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP930NMB | 2500 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP930NMB| Photo | |
|---|
| Product code | EV-K11ST2540OP930NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP930NWB | 2500 | 3000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP930NWB| Photo | |
|---|
| Product code | EV-K11ST2540OP930NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 3000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP940NRW | 2500 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP940NRW| Photo | |
|---|
| Product code | EV-K11ST2540OP940NRW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP940NMW | 2500 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP940NMW| Photo | |
|---|
| Product code | EV-K11ST2540OP940NMW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP940NWW | 2500 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP940NWW| Photo | |
|---|
| Product code | EV-K11ST2540OP940NWW |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | white 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP940NRB | 2500 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP940NRB| Photo | |
|---|
| Product code | EV-K11ST2540OP940NRB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | bright |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP940NMB | 2500 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP940NMB| Photo | |
|---|
| Product code | EV-K11ST2540OP940NMB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | metalized |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
| EV-K11ST2540OP940NWB | 2500 | 4000 | >90 | N/A | ON/OFF | IP 43 | cylindrical | N/A |
| EV-K11ST2540OP940NWB| Photo | |
|---|
| Product code | EV-K11ST2540OP940NWB |
|---|
| Luminaire type | track and spot |
|---|
| Mounting type | surface mounting |
|---|
| Mounting location | ceiling |
|---|
| Luminous flux (lm) | 2500 |
|---|
| Maximum luminous efficacy (lm/W) | N/A |
|---|
| Correlated color temperature (K) | 4000 |
|---|
| Color rendering index (CRI) | >90 |
|---|
| Median useful life | Lifetime: 50.000 L80 |
|---|
| Standard Deviation of Color Matching (SDCM) | N/A |
|---|
| Luminous intensity distribution direction | N/A |
|---|
| Beam angle | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Colour | black 02 |
|---|
| Luminous intensity distribution geometry | N/A |
|---|
| Luminous intensity distribution | N/A |
|---|
| Unified glare rating (UGR) | N/A |
|---|
| Angle 65° luminance | N/A |
|---|
| Voltage (V AC) | 230 |
|---|
| Power (W) | 20,4 |
|---|
| Wired lighting control | ON/OFF |
|---|
| Wireless lighting control | N/A |
|---|
| IP Code | IP 43 |
|---|
| IK Code | N/A |
|---|
| IEC protection class | I |
|---|
| Diffuser material | N/A |
|---|
| Reflector material | polycarbonate |
|---|
| Reflector Finish | white |
|---|
| Housing material | aluminium |
|---|
| Luminaire shape | cylindrical |
|---|
| Permissible ambient temperature range | Lifetime: 50.000 L80 B10 |
|---|
| Width (mm) | N/A |
|---|
| Length (mm) | N/A |
|---|
| Height (mm) | 120 |
|---|
| Weight (kg) | N/A |
|---|
| Diameter (mm) | 100 |
|---|
| Adjustable | no |
|---|
| Generic description | Downlight to adapt to three-phase track model KOMBIC 100 TK by Lamp brand. Body made of aluminum in either black or white extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Interior reflector availabel in a range of options. Heatsink made of die-cast aluminium. COB LED,featuring colour temperatures of either 3000K or 4000k with CRI80 or 90 with electronic wiring included. Insolation Class I. Lifetime: 50.000 L80 B10. With IP40 degree of protection. Group 0 photobiological safety. Environmental Product Declaration - EPDu00aeavailable, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015. |
|---|
| IES | Download |
|---|
| Optics | opal |
|---|
| Installation | sus. track |
|---|
| |
