| Product code | Luminous flux (lm) | Correlated color temperature (K) | Color rendering index (CRI) | Unified glare rating (UGR) | Wired lighting control | IP Code | Luminaire shape | Length (mm) | | Info | Add |
|---|
| EV-TR-80-35-SA-R-195-D-40-TW-HF-OP-9010-80 | 1950 | 2700~6500 | 80+ | | ON/OFF | IP 20 | round | |

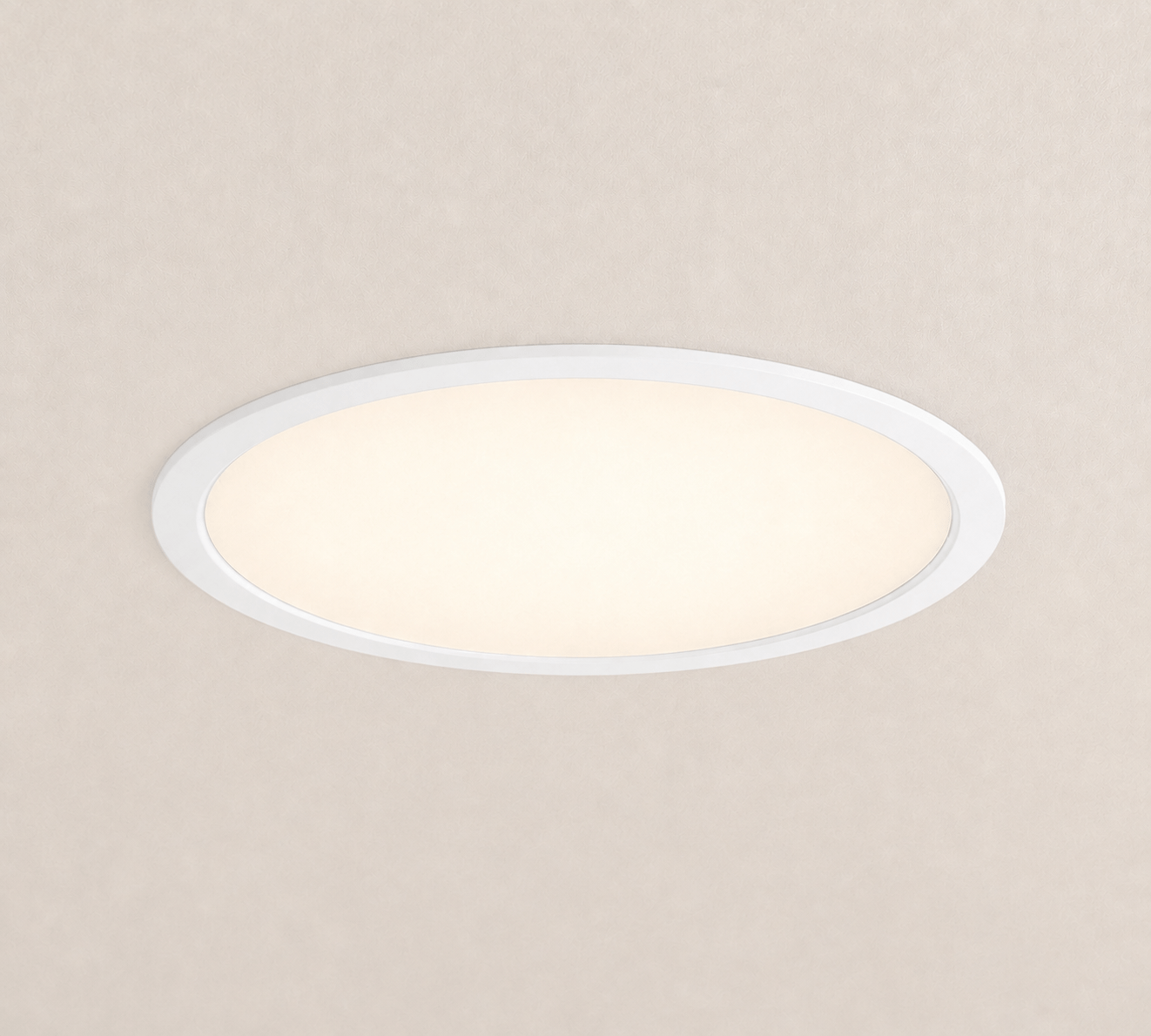

| EV-TR-80-35-SA-R-195-D-40-TW-HF-OP-9010-80Round Tromme 80 SAEV-TR-80-35-SA-R-195-D-40-TW-HF-OP-9010-80 The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 1950
Maximum luminous efficacy (lm/W): 120+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: White
Voltage (V AC): 220-240
Power (W): 16
Wired lighting control: ON/OFF
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 2.15
Diameter (mm): 350
Optics: Opal
Installation: recessed
| |
| EV-TR-80-60-SA-R-432-D-40-TW-HF-OP-9010-80 | 4320 | 2700~6500 | 80+ | | ON/OFF | IP 20 | round | |
| EV-TR-80-60-SA-R-432-D-40-TW-HF-OP-9010-80Round Tromme 80 SAEV-TR-80-60-SA-R-432-D-40-TW-HF-OP-9010-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: White
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: ON/OFF
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 4.1
Diameter (mm): 600
Optics: Opal
Installation: recessed
| |
| EV-TR-80-90-SA-R-762-D-40-TW-HF-OP-9010-80 | 7620 | 2700~6500 | 80+ | | ON/OFF | IP 20 | round | |
| EV-TR-80-90-SA-R-762-D-40-TW-HF-OP-9010-80Round Tromme 80 SAEV-TR-80-90-SA-R-762-D-40-TW-HF-OP-9010-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: White
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: ON/OFF
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 5.95
Diameter (mm): 900
Optics: Opal
Installation: recessed
| |
| EV-TR-80-35-SA-R-195-D-40-TW-HF-OP-9010-80 | 1950 | 2700~6500 | 80+ | | ON/OFF | IP 20 | round | |

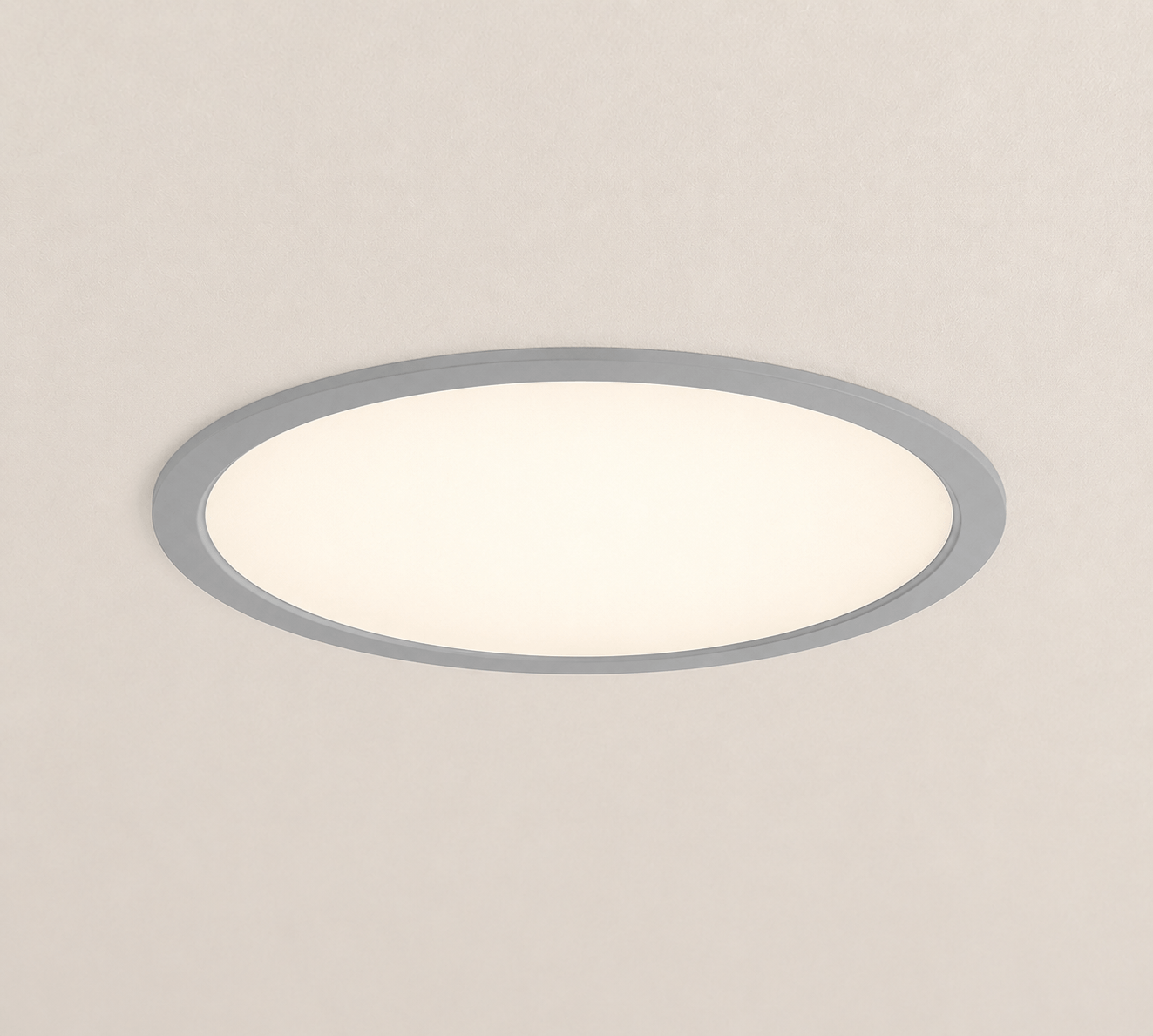

| EV-TR-80-35-SA-R-195-D-40-TW-HF-OP-9010-80Round Tromme 80 SAEV-TR-80-35-SA-R-195-D-40-TW-HF-OP-9010-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 1950
Maximum luminous efficacy (lm/W): 120+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: Grey
Voltage (V AC): 220-240
Power (W): 16
Wired lighting control: ON/OFF
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 2.15
Diameter (mm): 350
Optics: Opal
Installation: recessed
| |
| EV-TR-80-60-SA-R-432-D-40-TW-HF-OP-9010-80 | 4320 | 2700~6500 | 80+ | | ON/OFF | IP 20 | round | |
| EV-TR-80-60-SA-R-432-D-40-TW-HF-OP-9010-80Round Tromme 80 SAEV-TR-80-60-SA-R-432-D-40-TW-HF-OP-9010-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: Grey
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: ON/OFF
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 4.1
Diameter (mm): 600
Optics: Opal
Installation: recessed
| |
| EV-TR-80-90-SA-R-762-D-40-TW-HF-OP-9010-80 | 7620 | 2700~6500 | 80+ | | ON/OFF | IP 20 | round | |
| EV-TR-80-90-SA-R-762-D-40-TW-HF-OP-9010-80Round Tromme 80 SAEV-TR-80-90-SA-R-762-D-40-TW-HF-OP-9010-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: Grey
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: ON/OFF
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 5.95
Diameter (mm): 900
Optics: Opal
Installation: recessed
| |
| EV-TR-80-35-SA-R-195-D-40-TW-HF-OP-9005-80 | 1950 | 2700~6500 | 80+ | | ON/OFF | IP 20 | round | |

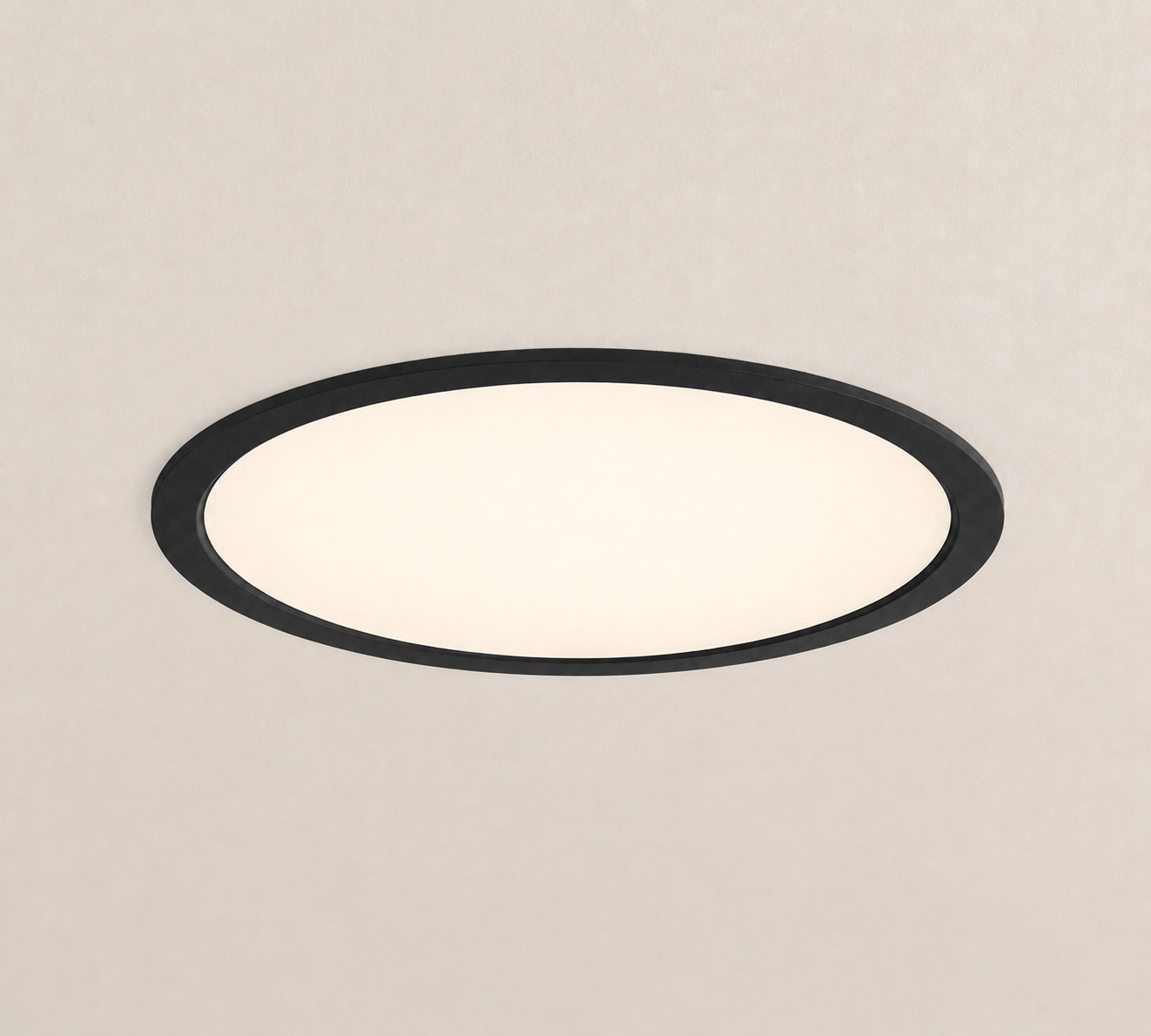

| EV-TR-80-35-SA-R-195-D-40-TW-HF-OP-9005-80Round Tromme 80 SAEV-TR-80-35-SA-R-195-D-40-TW-HF-OP-9005-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 1950
Maximum luminous efficacy (lm/W): 120+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: Black
Voltage (V AC): 220-240
Power (W): 16
Wired lighting control: ON/OFF
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 2.15
Diameter (mm): 350
Optics: Opal
Installation: recessed
| |
| EV-TR-80-60-SA-R-432-D-40-TW-HF-OP-9005-80 | 4320 | 2700~6500 | 80+ | | ON/OFF | IP 20 | round | |
| EV-TR-80-60-SA-R-432-D-40-TW-HF-OP-9005-80Round Tromme 80 SAEV-TR-80-60-SA-R-432-D-40-TW-HF-OP-9005-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: Black
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: ON/OFF
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 4.1
Diameter (mm): 600
Optics: Opal
Installation: recessed
| |
| EV-TR-80-90-SA-R-762-D-40-TW-HF-OP-9005-80 | 7620 | 2700~6500 | 80+ | | ON/OFF | IP 20 | round | |
| EV-TR-80-90-SA-R-762-D-40-TW-HF-OP-9005-80Round Tromme 80 SAEV-TR-80-90-SA-R-762-D-40-TW-HF-OP-9005-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: Black
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: ON/OFF
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 5.95
Diameter (mm): 900
Optics: Opal
Installation: recessed
| |
| EV-TR-80-35-SA-R-195-D-40-TW-DA-OP-9010-80 | 1950 | 2700~6500 | 80+ | | DALI | IP 20 | round | |
| EV-TR-80-35-SA-R-195-D-40-TW-DA-OP-9010-80Round Tromme 80 SAEV-TR-80-35-SA-R-195-D-40-TW-DA-OP-9010-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 1950
Maximum luminous efficacy (lm/W): 120+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: White
Voltage (V AC): 220-240
Power (W): 16
Wired lighting control: DALI
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 2.15
Diameter (mm): 350
Optics: Opal
Installation: recessed
| |
| EV-TR-80-60-SA-R-432-D-40-TW-DA-OP-9010-80 | 4320 | 2700~6500 | 80+ | | DALI | IP 20 | round | |
| EV-TR-80-60-SA-R-432-D-40-TW-DA-OP-9010-80Round Tromme 80 SAEV-TR-80-60-SA-R-432-D-40-TW-DA-OP-9010-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: White
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: DALI
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 4.1
Diameter (mm): 600
Optics: Opal
Installation: recessed
| |
| EV-TR-80-90-SA-R-762-D-40-TW-DA-OP-9010-80 | 7620 | 2700~6500 | 80+ | | DALI | IP 20 | round | |
| EV-TR-80-90-SA-R-762-D-40-TW-DA-OP-9010-80Round Tromme 80 SAEV-TR-80-90-SA-R-762-D-40-TW-DA-OP-9010-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: White
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: DALI
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 5.95
Diameter (mm): 900
Optics: Opal
Installation: recessed
| |
| EV-TR-80-35-SA-R-195-D-40-TW-DA-OP-9010-80 | 1950 | 2700~6500 | 80+ | | DALI | IP 20 | round | |
| EV-TR-80-35-SA-R-195-D-40-TW-DA-OP-9010-80Round Tromme 80 SAEV-TR-80-35-SA-R-195-D-40-TW-DA-OP-9010-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 1950
Maximum luminous efficacy (lm/W): 120+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: Grey
Voltage (V AC): 220-240
Power (W): 16
Wired lighting control: DALI
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 2.15
Diameter (mm): 350
Optics: Opal
Installation: recessed
| |
| EV-TR-80-60-SA-R-432-D-40-TW-DA-OP-9010-80 | 4320 | 2700~6500 | 80+ | | DALI | IP 20 | round | |
| EV-TR-80-60-SA-R-432-D-40-TW-DA-OP-9010-80Round Tromme 80 SAEV-TR-80-60-SA-R-432-D-40-TW-DA-OP-9010-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: Grey
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: DALI
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 4.1
Diameter (mm): 600
Optics: Opal
Installation: recessed
| |
| EV-TR-80-90-SA-R-762-D-40-TW-DA-OP-9010-80 | 7620 | 2700~6500 | 80+ | | DALI | IP 20 | round | |
| EV-TR-80-90-SA-R-762-D-40-TW-DA-OP-9010-80Round Tromme 80 SAEV-TR-80-90-SA-R-762-D-40-TW-DA-OP-9010-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: Grey
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: DALI
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 5.95
Diameter (mm): 900
Optics: Opal
Installation: recessed
| |
| EV-TR-80-35-SA-R-195-D-40-TW-DA-OP-9005-80 | 1950 | 2700~6500 | 80+ | | DALI | IP 20 | round | |
| EV-TR-80-35-SA-R-195-D-40-TW-DA-OP-9005-80Round Tromme 80 SAEV-TR-80-35-SA-R-195-D-40-TW-DA-OP-9005-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 1950
Maximum luminous efficacy (lm/W): 120+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: Black
Voltage (V AC): 220-240
Power (W): 16
Wired lighting control: DALI
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 2.15
Diameter (mm): 350
Optics: Opal
Installation: recessed
| |
| EV-TR-80-60-SA-R-432-D-40-TW-DA-OP-9005-80 | 4320 | 2700~6500 | 80+ | | DALI | IP 20 | round | |

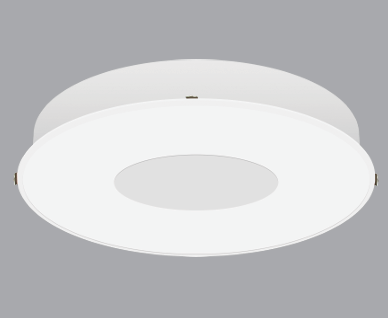

| EV-TR-80-60-SA-R-432-D-40-TW-DA-OP-9005-80Round Tromme 80 SAEV-TR-80-60-SA-R-432-D-40-TW-DA-OP-9005-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: Black
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: DALI
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 4.1
Diameter (mm): 600
Optics: Opal
Installation: recessed
| |
| EV-TR-80-90-SA-R-762-D-40-TW-DA-OP-9005-80 | 7620 | 2700~6500 | 80+ | | DALI | IP 20 | round | |

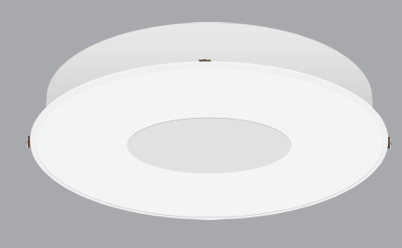

| EV-TR-80-90-SA-R-762-D-40-TW-DA-OP-9005-80Round Tromme 80 SAEV-TR-80-90-SA-R-762-D-40-TW-DA-OP-9005-80The ROUND TROMME 80 DESIGN SA is a flexible LED luminaire for recessed or surface mounting, featuring powder-coated steel or aluminium construction. It comes with a PS opal diffuser as standard, with optional PMMA and prismatic versions, and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Designed for 220u2013240V operation and an ambient temperature range of u221220u00b0C to +35u00b0C, it is suitable for offices, shops and stores, architectural, educational, and retail applications. Luminaire type: recessed
Mounting type: recessed
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H+
Luminous intensity distribution direction: direct
Colour: Black
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: DALI
IP Code: IP 20
Diffuser material: PMMA
Luminaire shape: round
Permissible ambient temperature range: -55
Height (mm): 82
Weight (kg): 5.95
Diameter (mm): 900
Optics: Opal
Installation: recessed
| |
