| Product code | Luminous flux (lm) | Correlated color temperature (K) | Color rendering index (CRI) | Unified glare rating (UGR) | Wired lighting control | IP Code | Luminaire shape | Length (mm) | | Info | Add |
|---|
| EV-TR-600-T-S-432,159-DI-40-TW-HF-OP-9010 | 4320 down 1590 up | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 600 |

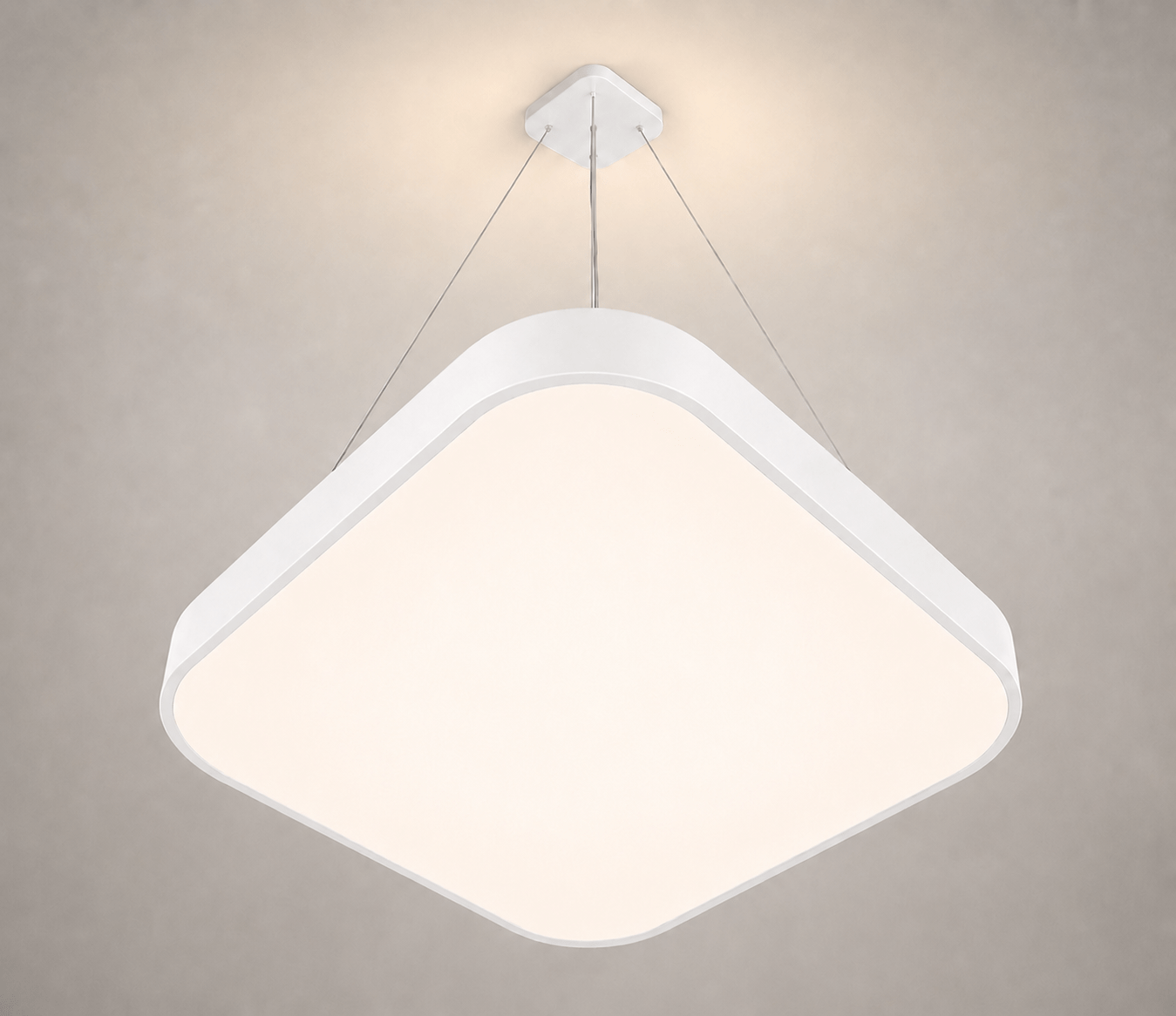

| EV-TR-600-T-S-432,159-DI-40-TW-HF-OP-9010Square Tromme 80 Up & Down TEV-TR-600-T-S-432,159-DI-40-TW-HF-OP-9010 The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320 down 1590 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: white
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: opal
Installation: suspended
| |
| EV-TR-900-T-S-762,285-DI-40-TW-HF-OP-9010 | 7620 down 2850 up | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 900 |
| EV-TR-900-T-S-762,285-DI-40-TW-HF-OP-9010Square Tromme 80 Up & Down TEV-TR-900-T-S-762,285-DI-40-TW-HF-OP-9010The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620 down 2850 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: white
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: opal
Installation: suspended
| |
| EV-TR-600-T-S-432,159-DI-40-TW-DA-OP-9010 | 4320 down 1590 up | 2700~6500 | 80+ | | DALI | IP 40 | square | 600 |
| EV-TR-600-T-S-432,159-DI-40-TW-DA-OP-9010Square Tromme 80 Up & Down TEV-TR-600-T-S-432,159-DI-40-TW-DA-OP-9010The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320 down 1590 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: white
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: opal
Installation: suspended
| |
| EV-TR-900-T-S-762,285-DI-40-TW-DA-OP-9010 | 7620 down 2850 up | 2700~6500 | 80+ | | DALI | IP 40 | square | 900 |
| EV-TR-900-T-S-762,285-DI-40-TW-DA-OP-9010Square Tromme 80 Up & Down TEV-TR-900-T-S-762,285-DI-40-TW-DA-OP-9010The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620 down 2850 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: white
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: opal
Installation: suspended
| |
| EV-TR-600-T-S-432,159-DI-40-TW-HF-OP-7000 | 4320 down 1590 up | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 600 |

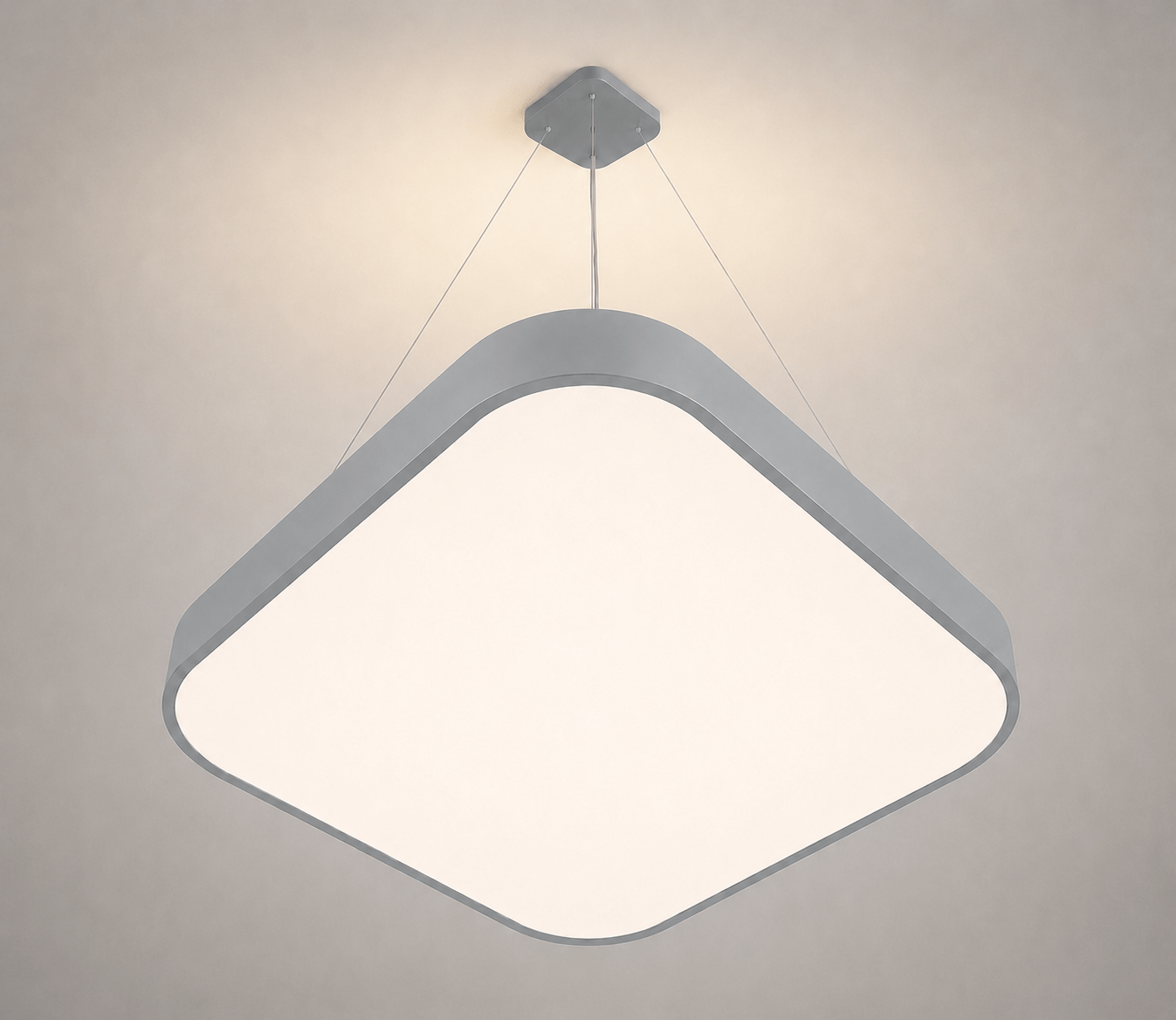

| EV-TR-600-T-S-432,159-DI-40-TW-HF-OP-7000Square Tromme 80 Up & Down TEV-TR-600-T-S-432,159-DI-40-TW-HF-OP-7000The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320 down 1590 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: grey
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: opal
Installation: suspended
| |
| EV-TR-900-T-S-762,285-DI-40-TW-HF-OP-7000 | 7620 down 2850 up | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 900 |
| EV-TR-900-T-S-762,285-DI-40-TW-HF-OP-7000Square Tromme 80 Up & Down TEV-TR-900-T-S-762,285-DI-40-TW-HF-OP-7000The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620 down 2850 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: grey
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: opal
Installation: suspended
| |
| EV-TR-600-T-S-432,159-DI-40-TW-DA-OP-7000 | 4320 down 1590 up | 2700~6500 | 80+ | | DALI | IP 40 | square | 600 |
| EV-TR-600-T-S-432,159-DI-40-TW-DA-OP-7000Square Tromme 80 Up & Down TEV-TR-600-T-S-432,159-DI-40-TW-DA-OP-7000The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320 down 1590 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: grey
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: opal
Installation: suspended
| |
| EV-TR-900-T-S-762,285-DI-40-TW-DA-OP7000 | 7620 down 2850 up | 2700~6500 | 80+ | | DALI | IP 40 | square | 900 |
| EV-TR-900-T-S-762,285-DI-40-TW-DA-OP7000Square Tromme 80 Up & Down TEV-TR-900-T-S-762,285-DI-40-TW-DA-OP7000The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620 down 2850 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: grey
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: opal
Installation: suspended
| |
| EV-TR-600-T-S-432,159-DI-40-TW-HF-OP-9005 | 4320 down 1590 up | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 600 |
| EV-TR-600-T-S-432,159-DI-40-TW-HF-OP-9005Square Tromme 80 Up & Down TEV-TR-600-T-S-432,159-DI-40-TW-HF-OP-9005The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320 down 1590 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: black
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: opal
Installation: suspended
| |
| EV-TR-900-T-S-762,285-DI-40-TW-HF-OP-9005 | 7620 down 2850 up | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 900 |
| EV-TR-900-T-S-762,285-DI-40-TW-HF-OP-9005Square Tromme 80 Up & Down TEV-TR-900-T-S-762,285-DI-40-TW-HF-OP-9005The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620 down 2850 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: black
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: opal
Installation: suspended
| |
| EV-TR-600-T-S-432,159-DI-40-TW-DA-OP-9005 | 4320 down 1590 up | 2700~6500 | 80+ | | DALI | IP 40 | square | 600 |
| EV-TR-600-T-S-432,159-DI-40-TW-DA-OP-9005Square Tromme 80 Up & Down TEV-TR-600-T-S-432,159-DI-40-TW-DA-OP-9005The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320 down 1590 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: black
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: opal
Installation: suspended
| |
| EV-TR-900-T-S-762,285-DI-40-TW-DA-OP-9005 | 7620 down 2850 up | 2700~6500 | 80+ | | DALI | IP 40 | square | 900 |
| EV-TR-900-T-S-762,285-DI-40-TW-DA-OP-9005Square Tromme 80 Up & Down TEV-TR-900-T-S-762,285-DI-40-TW-DA-OP-9005The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620 down 2850 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: black
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: opal
Installation: suspended
| |
| EV-TR-600-T-S-432,159-DI-40-TW-PR-OP-9010 | 4320 down 1590 up | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 600 |
| EV-TR-600-T-S-432,159-DI-40-TW-PR-OP-9010Square Tromme 80 Up & Down TEV-TR-600-T-S-432,159-DI-40-TW-PR-OP-9010The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320 down 1590 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: white
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: prismatic
Installation: suspended
| |
| EV-TR-900-T-S-762,285-DI-40-TW-PR-9010 | 7620 down 2850 up | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 900 |
| EV-TR-900-T-S-762,285-DI-40-TW-PR-9010Square Tromme 80 Up & Down TEV-TR-900-T-S-762,285-DI-40-TW-PR-9010The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620 down 2850 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: white
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: prismatic
Installation: suspended
| |
| EV-TR-600-T-S-432,159-DI-40-TW-DA-PR-9010 | 4320 down 1590 up | 2700~6500 | 80+ | | DALI | IP 40 | square | 600 |
| EV-TR-600-T-S-432,159-DI-40-TW-DA-PR-9010Square Tromme 80 Up & Down TEV-TR-600-T-S-432,159-DI-40-TW-DA-PR-9010The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320 down 1590 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: white
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: prismatic
Installation: suspended
| |
| EV-TR-900-T-S-762,285-DI-40-TW-DA-PR-9010 | 7620 down 2850 up | 2700~6500 | 80+ | | DALI | IP 40 | square | 900 |
| EV-TR-900-T-S-762,285-DI-40-TW-DA-PR-9010Square Tromme 80 Up & Down TEV-TR-900-T-S-762,285-DI-40-TW-DA-PR-9010The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620 down 2850 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: white
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: prismatic
Installation: suspended
| |
| EV-TR-600-T-S-432,159-DI-40-TW-HF-PR-7000 | 4320 down 1590 up | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 600 |
| EV-TR-600-T-S-432,159-DI-40-TW-HF-PR-7000Square Tromme 80 Up & Down TEV-TR-600-T-S-432,159-DI-40-TW-HF-PR-7000The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320 down 1590 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: grey
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: prismatic
Installation: suspended
| |
| EV-TR-900-T-S-762,285-DI-40-TW-HF-PR-7000 | 7620 down 2850 up | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 900 |
| EV-TR-900-T-S-762,285-DI-40-TW-HF-PR-7000Square Tromme 80 Up & Down TEV-TR-900-T-S-762,285-DI-40-TW-HF-PR-7000The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620 down 2850 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: grey
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: prismatic
Installation: suspended
| |
| EV-TR-600-T-S-432,159-DI-40-TW-DA-PR-7000 | 4320 down 1590 up | 2700~6500 | 80+ | | DALI | IP 40 | square | 600 |
| EV-TR-600-T-S-432,159-DI-40-TW-DA-PR-7000Square Tromme 80 Up & Down TEV-TR-600-T-S-432,159-DI-40-TW-DA-PR-7000The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320 down 1590 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: grey
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: prismatic
Installation: suspended
| |
| EV-TR-900-T-S-762,285-DI-40-TW-DA-PR-7000 | 7620 down 2850 up | 2700~6500 | 80+ | | DALI | IP 40 | square | 900 |
| EV-TR-900-T-S-762,285-DI-40-TW-DA-PR-7000Square Tromme 80 Up & Down TEV-TR-900-T-S-762,285-DI-40-TW-DA-PR-7000The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620 down 2850 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: grey
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: prismatic
Installation: suspended
| |
| EV-TR-600-T-S-432,159-DI-40-TW-HF-PR-9005 | 4320 down 1590 up | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 600 |
| EV-TR-600-T-S-432,159-DI-40-TW-HF-PR-9005Square Tromme 80 Up & Down TEV-TR-600-T-S-432,159-DI-40-TW-HF-PR-9005The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320 down 1590 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: black
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: prismatic
Installation: suspended
| |
| EV-TR-900-T-S-762,285-DI-40-TW-HF-PR-9005 | 7620 down 2850 up | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 900 |
| EV-TR-900-T-S-762,285-DI-40-TW-HF-PR-9005Square Tromme 80 Up & Down TEV-TR-900-T-S-762,285-DI-40-TW-HF-PR-9005The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620 down 2850 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: black
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: prismatic
Installation: suspended
| |
| EV-TR-600-T-S-432,159-DI-40-TW-DA-PR-9005 | 4320 down 1590 up | 2700~6500 | 80+ | | DALI | IP 40 | square | 600 |
| EV-TR-600-T-S-432,159-DI-40-TW-DA-PR-9005Square Tromme 80 Up & Down TEV-TR-600-T-S-432,159-DI-40-TW-DA-PR-9005The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320 down 1590 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: black
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: prismatic
Installation: suspended
| |
| EV-TR-900-T-S-762,285-DI-40-TW-DA-PR-9005 | 7620 down 2850 up | 2700~6500 | 80+ | | DALI | IP 40 | square | 900 |
| EV-TR-900-T-S-762,285-DI-40-TW-DA-PR-9005Square Tromme 80 Up & Down TEV-TR-900-T-S-762,285-DI-40-TW-DA-PR-9005The SQUARE DRUM 80 UP&DOWN T is a compact LED luminaire offering direct and indirect lighting. It features a powder-coated aluminium body with a PMMA opal diffuser and optional prismatic versions. Using mid-power LEDs, it provides over 50,000 hours of lifetime (L80/B10), operates on 220u2013240V, and supports optional CASAMBI, Easy-Air, and DALI controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Emergency options available. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620 down 2850 up
Maximum luminous efficacy (lm/W): 125+ down 110+ up
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct/Indirect
Colour: black
Voltage (V AC): 220-240
Power (W): 34 down 14 up
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: prismatic
Installation: suspended
| |
