| Product code | Luminous flux (lm) | Correlated color temperature (K) | Color rendering index (CRI) | Unified glare rating (UGR) | Wired lighting control | IP Code | Luminaire shape | Length (mm) | | Info | Add |
|---|
| EV-VL-60-T-L-1680-D-40-TW-HF-OP-9010-38 | 1680 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 600 |
| EV-VL-60-T-L-1680-D-40-TW-HF-OP-9010-38VLinje 38 TEV-VL-60-T-L-1680-D-40-TW-HF-OP-9010-38VLinje 38 Tr
r

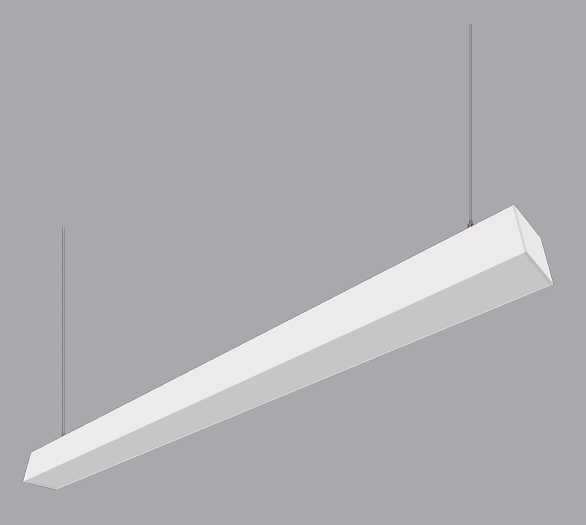

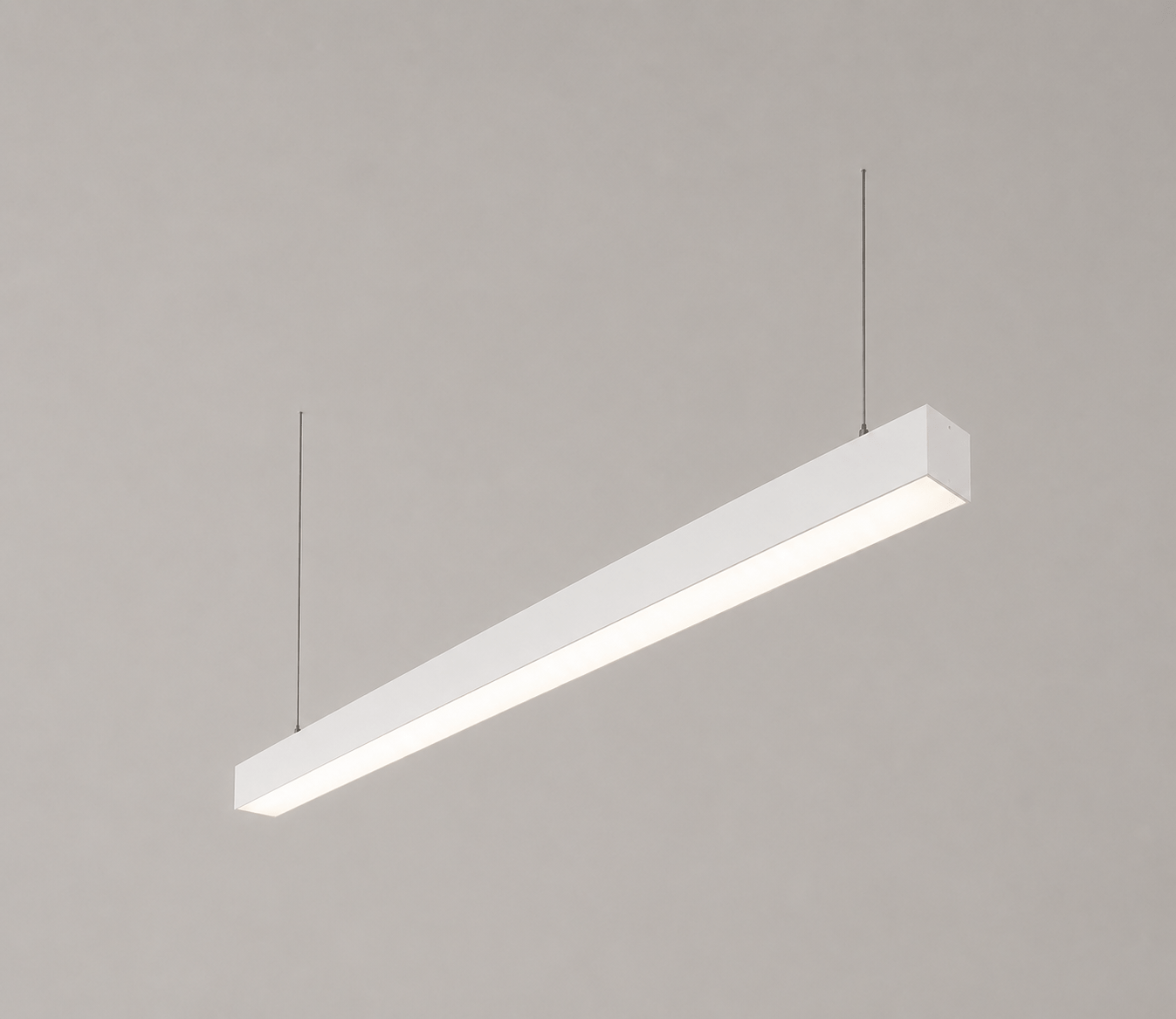

The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 1680
Maximum luminous efficacy (lm/W): 112
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 15
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: opal
Installation: suspended
| |
| EV-VL-90-T-L-2415-D-40-TW-HF-OP-9010-38 | 2415 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 900 |
| EV-VL-90-T-L-2415-D-40-TW-HF-OP-9010-38VLinje 38 TEV-VL-90-T-L-2415-D-40-TW-HF-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2415
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 21
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: opal
Installation: suspended
| |
| EV-VL-120-T-L-3220-D-40-TW-HF-OP-9010-38 | 3220 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1200 |
| EV-VL-120-T-L-3220-D-40-TW-HF-OP-9010-38VLinje 38 TEV-VL-120-T-L-3220-D-40-TW-HF-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3220
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 28
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: opal
Installation: suspended
| |
| EV-VL-150-T-L-4140-D-40-TW-HF-OP-9010-38 | 4140 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1500 |
| EV-VL-150-T-L-4140-D-40-TW-HF-OP-9010-38VLinje 38 TEV-VL-150-T-L-4140-D-40-TW-HF-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4140
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 36
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: opal
Installation: suspended
| |
| EV-VL-60-T-L-2300-D-40-TW-HF-OP-9010-38 | 2300 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 600 |
| EV-VL-60-T-L-2300-D-40-TW-HF-OP-9010-38VLinje 38 TEV-VL-60-T-L-2300-D-40-TW-HF-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2300
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 20
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: opal
Installation: suspended
| |
| EV-VL-90-T-L-3450-D-40-TW-HF-OP-9010-38 | 3450 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 900 |
| EV-VL-90-T-L-3450-D-40-TW-HF-OP-9010-38VLinje 38 TEV-VL-90-T-L-3450-D-40-TW-HF-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3450
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 30
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: opal
Installation: suspended
| |
| EV-VL-120-T-L-4715-D-40-TW-HF-OP-9010-38 | 4715 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1200 |
| EV-VL-120-T-L-4715-D-40-TW-HF-OP-9010-38VLinje 38 TEV-VL-120-T-L-4715-D-40-TW-HF-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4715
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 41
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: opal
Installation: suspended
| |
| EV-VL-150-T-L-5865-D-40-TW-HF-OP-9010-38 | 5865 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1500 |
| EV-VL-150-T-L-5865-D-40-TW-HF-OP-9010-38VLinje 38 TEV-VL-150-T-L-5865-D-40-TW-HF-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 5865
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 51
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: opal
Installation: suspended
| |
| EV-VL-60-T-L-1680-D-40-TW-HF-OP-9005-38 | 1680 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 600 |
| EV-VL-60-T-L-1680-D-40-TW-HF-OP-9005-38VLinje 38 TEV-VL-60-T-L-1680-D-40-TW-HF-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 1680
Maximum luminous efficacy (lm/W): 112
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 15
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: opal
Installation: suspended
| |
| EV-VL-90-T-L-2415-D-40-TW-HF-OP-9005-38 | 2415 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 900 |
| EV-VL-90-T-L-2415-D-40-TW-HF-OP-9005-38VLinje 38 TEV-VL-90-T-L-2415-D-40-TW-HF-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2415
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 21
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: opal
Installation: suspended
| |
| EV-VL-120-T-L-3220-D-40-TW-HF-OP-9005-38 | 3220 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1200 |
| EV-VL-120-T-L-3220-D-40-TW-HF-OP-9005-38VLinje 38 TEV-VL-120-T-L-3220-D-40-TW-HF-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3220
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 28
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: opal
Installation: suspended
| |
| EV-VL-150-T-L-4140-D-40-TW-HF-OP-9005-38 | 4140 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1500 |
| EV-VL-150-T-L-4140-D-40-TW-HF-OP-9005-38VLinje 38 TEV-VL-150-T-L-4140-D-40-TW-HF-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4140
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 36
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: opal
Installation: suspended
| |
| EV-VL-60-T-L-2300-D-40-TW-HF-OP-9005-38 | 2300 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 600 |
| EV-VL-60-T-L-2300-D-40-TW-HF-OP-9005-38VLinje 38 TEV-VL-60-T-L-2300-D-40-TW-HF-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2300
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 20
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: opal
Installation: suspended
| |
| EV-VL-90-T-L-3450-D-40-TW-HF-OP-9005-38 | 3450 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 900 |
| EV-VL-90-T-L-3450-D-40-TW-HF-OP-9005-38VLinje 38 TEV-VL-90-T-L-3450-D-40-TW-HF-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3450
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 30
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: opal
Installation: suspended
| |
| EV-VL-120-T-L-4715-D-40-TW-HF-OP-9005-38 | 4715 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1200 |
| EV-VL-120-T-L-4715-D-40-TW-HF-OP-9005-38VLinje 38 TEV-VL-120-T-L-4715-D-40-TW-HF-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4715
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 41
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: opal
Installation: suspended
| |
| EV-VL-150-T-L-5865-D-40-TW-HF-OP-9005-38 | 5865 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1500 |
| EV-VL-150-T-L-5865-D-40-TW-HF-OP-9005-38VLinje 38 TEV-VL-150-T-L-5865-D-40-TW-HF-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 5865
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 51
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: opal
Installation: suspended
| |
| EV-VL-60-T-L-1680-D-40-TW-HF-OP-7000-38 | 1680 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 600 |
| EV-VL-60-T-L-1680-D-40-TW-HF-OP-7000-38VLinje 38 TEV-VL-60-T-L-1680-D-40-TW-HF-OP-7000-38VLinje 38 Tr
r

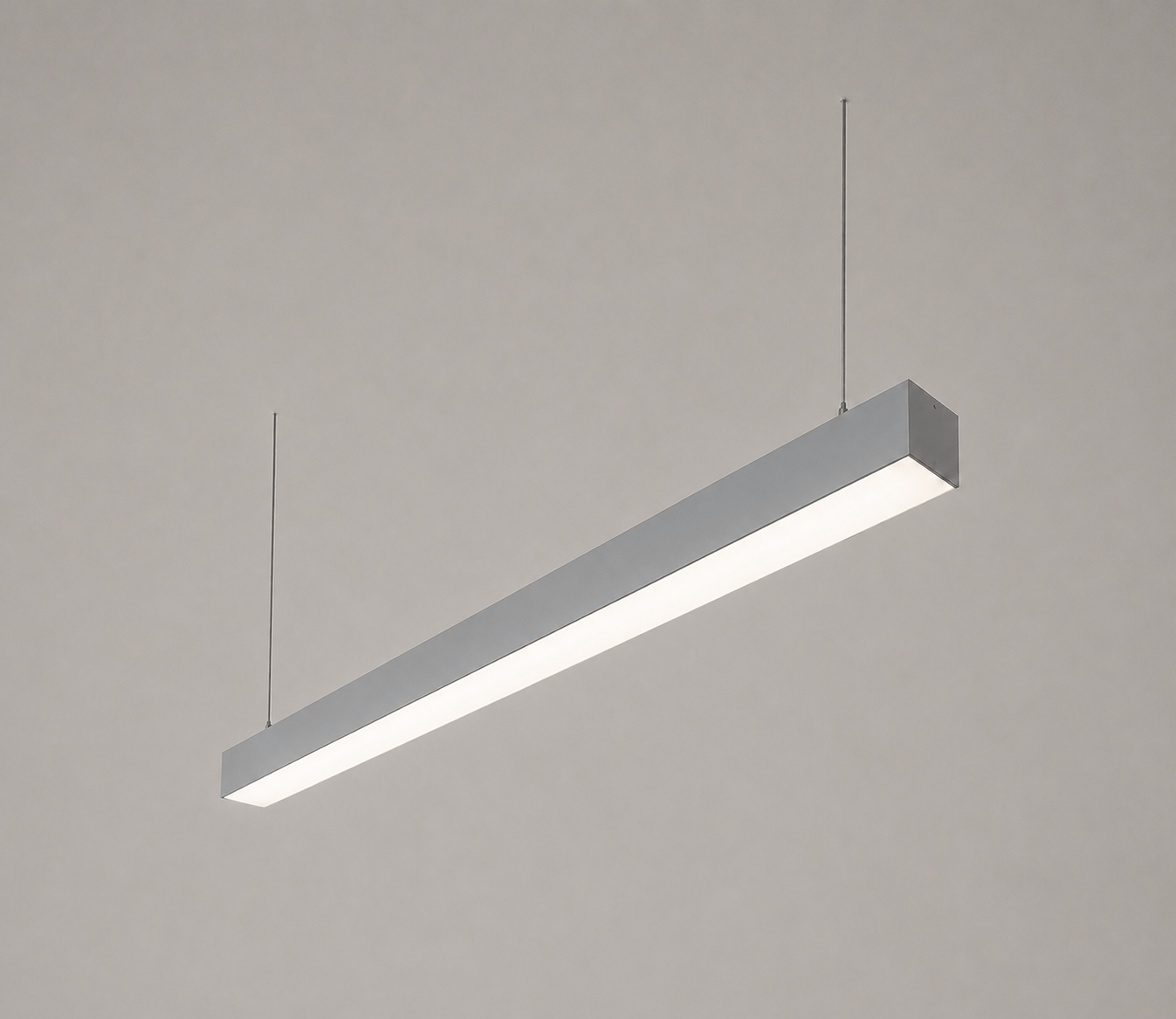

The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 1680
Maximum luminous efficacy (lm/W): 112
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 15
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: opal
Installation: suspended
| |
| EV-VL-90-T-L-2415-D-40-TW-HF-OP-7000-38 | 2415 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 900 |
| EV-VL-90-T-L-2415-D-40-TW-HF-OP-7000-38VLinje 38 TEV-VL-90-T-L-2415-D-40-TW-HF-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2415
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 21
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: opal
Installation: suspended
| |
| EV-VL-120-T-L-3220-D-40-TW-HF-OP-7000-38 | 3220 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1200 |
| EV-VL-120-T-L-3220-D-40-TW-HF-OP-7000-38VLinje 38 TEV-VL-120-T-L-3220-D-40-TW-HF-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3220
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 28
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: opal
Installation: suspended
| |
| EV-VL-150-T-L-4140-D-40-TW-HF-OP-7000-38 | 4140 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1500 |
| EV-VL-150-T-L-4140-D-40-TW-HF-OP-7000-38VLinje 38 TEV-VL-150-T-L-4140-D-40-TW-HF-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4140
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 36
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: opal
Installation: suspended
| |
| EV-VL-60-T-L-2300-D-40-TW-HF-OP-7000-38 | 2300 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 600 |
| EV-VL-60-T-L-2300-D-40-TW-HF-OP-7000-38VLinje 38 TEV-VL-60-T-L-2300-D-40-TW-HF-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2300
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 20
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: opal
Installation: suspended
| |
| EV-VL-90-T-L-3450-D-40-TW-HF-OP-7000-38 | 3450 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 900 |
| EV-VL-90-T-L-3450-D-40-TW-HF-OP-7000-38VLinje 38 TEV-VL-90-T-L-3450-D-40-TW-HF-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3450
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 30
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: opal
Installation: suspended
| |
| EV-VL-120-T-L-4715-D-40-TW-HF-OP-7000-38 | 4715 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1200 |
| EV-VL-120-T-L-4715-D-40-TW-HF-OP-7000-38VLinje 38 TEV-VL-120-T-L-4715-D-40-TW-HF-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4715
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 41
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: opal
Installation: suspended
| |
| EV-VL-150-T-L-5865-D-40-TW-HF-OP-7000-38 | 5865 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1500 |
| EV-VL-150-T-L-5865-D-40-TW-HF-OP-7000-38VLinje 38 TEV-VL-150-T-L-5865-D-40-TW-HF-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 5865
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 51
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: opal
Installation: suspended
| |
| EV-VL-60-T-L-1680-D-40-TW-HF-PR-9010-38 | 1680 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 600 |
| EV-VL-60-T-L-1680-D-40-TW-HF-PR-9010-38VLinje 38 TEV-VL-60-T-L-1680-D-40-TW-HF-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 1680
Maximum luminous efficacy (lm/W): 112
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 15
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: prismatic
Installation: suspended
| |
| EV-VL-90-T-L-2415-D-40-TW-HF-PR-9010-38 | 2415 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 900 |
| EV-VL-90-T-L-2415-D-40-TW-HF-PR-9010-38VLinje 38 TEV-VL-90-T-L-2415-D-40-TW-HF-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2415
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 21
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: prismatic
Installation: suspended
| |
| EV-VL-120-T-L-3220-D-40-TW-HF-PR-9010-38 | 3220 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1200 |
| EV-VL-120-T-L-3220-D-40-TW-HF-PR-9010-38VLinje 38 TEV-VL-120-T-L-3220-D-40-TW-HF-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3220
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 28
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: prismatic
Installation: suspended
| |
| EV-VL-150-T-L-4140-D-40-TW-HF-PR-9010-38 | 4140 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1500 |
| EV-VL-150-T-L-4140-D-40-TW-HF-PR-9010-38VLinje 38 TEV-VL-150-T-L-4140-D-40-TW-HF-PR-9010-38VLinje 38 Tr
r

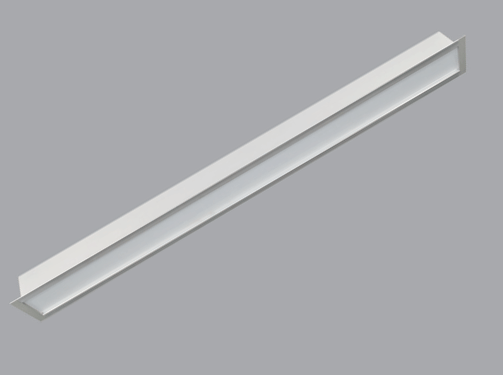

The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4140
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 36
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: prismatic
Installation: suspended
| |
| EV-VL-60-T-L-2300-D-40-TW-HF-PR-9010-38 | 2300 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 600 |
| EV-VL-60-T-L-2300-D-40-TW-HF-PR-9010-38VLinje 38 TEV-VL-60-T-L-2300-D-40-TW-HF-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2300
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 20
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: prismatic
Installation: suspended
| |
| EV-VL-90-T-L-3450-D-40-TW-HF-PR-9010-38 | 3450 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 900 |
| EV-VL-90-T-L-3450-D-40-TW-HF-PR-9010-38VLinje 38 TEV-VL-90-T-L-3450-D-40-TW-HF-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3450
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 30
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: prismatic
Installation: suspended
| |
| EV-VL-120-T-L-4715-D-40-TW-HF-PR-9010-38 | 4715 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1200 |
| EV-VL-120-T-L-4715-D-40-TW-HF-PR-9010-38VLinje 38 TEV-VL-120-T-L-4715-D-40-TW-HF-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4715
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 41
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: prismatic
Installation: suspended
| |
| EV-VL-150-T-L-5865-D-40-TW-HF-PR-9010-38 | 5865 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1500 |
| EV-VL-150-T-L-5865-D-40-TW-HF-PR-9010-38VLinje 38 TEV-VL-150-T-L-5865-D-40-TW-HF-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 5865
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 51
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: prismatic
Installation: suspended
| |
| EV-VL-60-T-L-1680-D-40-TW-HF-PR-9005-38 | 1680 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 600 |
| EV-VL-60-T-L-1680-D-40-TW-HF-PR-9005-38VLinje 38 TEV-VL-60-T-L-1680-D-40-TW-HF-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 1680
Maximum luminous efficacy (lm/W): 112
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 15
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: prismatic
Installation: suspended
| |
| EV-VL-90-T-L-2415-D-40-TW-HF-PR-9005-38 | 2415 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 900 |
| EV-VL-90-T-L-2415-D-40-TW-HF-PR-9005-38VLinje 38 TEV-VL-90-T-L-2415-D-40-TW-HF-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2415
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 21
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: prismatic
Installation: suspended
| |
| EV-VL-120-T-L-3220-D-40-TW-HF-PR-9005-38 | 3220 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1200 |
| EV-VL-120-T-L-3220-D-40-TW-HF-PR-9005-38VLinje 38 TEV-VL-120-T-L-3220-D-40-TW-HF-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3220
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 28
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: prismatic
Installation: suspended
| |
| EV-VL-150-T-L-4140-D-40-TW-HF-PR-9005-38 | 4140 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1500 |
| EV-VL-150-T-L-4140-D-40-TW-HF-PR-9005-38VLinje 38 TEV-VL-150-T-L-4140-D-40-TW-HF-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4140
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 36
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: prismatic
Installation: suspended
| |
| EV-VL-60-T-L-2300-D-40-TW-HF-PR-9005-38 | 2300 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 600 |
| EV-VL-60-T-L-2300-D-40-TW-HF-PR-9005-38VLinje 38 TEV-VL-60-T-L-2300-D-40-TW-HF-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2300
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 20
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: prismatic
Installation: suspended
| |
| EV-VL-90-T-L-3450-D-40-TW-HF-PR-9005-38 | 3450 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 900 |
| EV-VL-90-T-L-3450-D-40-TW-HF-PR-9005-38VLinje 38 TEV-VL-90-T-L-3450-D-40-TW-HF-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3450
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 30
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: prismatic
Installation: suspended
| |
| EV-VL-120-T-L-4715-D-40-TW-HF-PR-9005-38 | 4715 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1200 |
| EV-VL-120-T-L-4715-D-40-TW-HF-PR-9005-38VLinje 38 TEV-VL-120-T-L-4715-D-40-TW-HF-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4715
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 41
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: prismatic
Installation: suspended
| |
| EV-VL-150-T-L-5865-D-40-TW-HF-PR-9005-38 | 5865 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1500 |
| EV-VL-150-T-L-5865-D-40-TW-HF-PR-9005-38VLinje 38 TEV-VL-150-T-L-5865-D-40-TW-HF-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 5865
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 51
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: prismatic
Installation: suspended
| |
| EV-VL-60-T-L-1680-D-40-TW-HF-PR-7000-38 | 1680 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 600 |
| EV-VL-60-T-L-1680-D-40-TW-HF-PR-7000-38VLinje 38 TEV-VL-60-T-L-1680-D-40-TW-HF-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 1680
Maximum luminous efficacy (lm/W): 112
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 15
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: prismatic
Installation: suspended
| |
| EV-VL-90-T-L-2415-D-40-TW-HF-PR-7000-38 | 2415 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 900 |
| EV-VL-90-T-L-2415-D-40-TW-HF-PR-7000-38VLinje 38 TEV-VL-90-T-L-2415-D-40-TW-HF-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2415
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 21
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: prismatic
Installation: suspended
| |
| EV-VL-120-T-L-3220-D-40-TW-HF-PR-7000-38 | 3220 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1200 |
| EV-VL-120-T-L-3220-D-40-TW-HF-PR-7000-38VLinje 38 TEV-VL-120-T-L-3220-D-40-TW-HF-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3220
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 28
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: prismatic
Installation: suspended
| |
| EV-VL-150-T-L-4140-D-40-TW-HF-PR-7000-38 | 4140 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1500 |
| EV-VL-150-T-L-4140-D-40-TW-HF-PR-7000-38VLinje 38 TEV-VL-150-T-L-4140-D-40-TW-HF-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4140
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 36
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: prismatic
Installation: suspended
| |
| EV-VL-60-T-L-2300-D-40-TW-HF-PR-7000-38 | 2300 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 600 |
| EV-VL-60-T-L-2300-D-40-TW-HF-PR-7000-38VLinje 38 TEV-VL-60-T-L-2300-D-40-TW-HF-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2300
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 20
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: prismatic
Installation: suspended
| |
| EV-VL-90-T-L-3450-D-40-TW-HF-PR-7000-38 | 3450 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 900 |
| EV-VL-90-T-L-3450-D-40-TW-HF-PR-7000-38VLinje 38 TEV-VL-90-T-L-3450-D-40-TW-HF-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3450
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 30
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: prismatic
Installation: suspended
| |
| EV-VL-120-T-L-4715-D-40-TW-HF-PR-7000-38 | 4715 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1200 |
| EV-VL-120-T-L-4715-D-40-TW-HF-PR-7000-38VLinje 38 TEV-VL-120-T-L-4715-D-40-TW-HF-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4715
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 41
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: prismatic
Installation: suspended
| |
| EV-VL-150-T-L-5865-D-40-TW-HF-PR-7000-38 | 5865 | 2700~6500 | 80 | | ON/OFF | 40 | linear | 1500 |
| EV-VL-150-T-L-5865-D-40-TW-HF-PR-7000-38VLinje 38 TEV-VL-150-T-L-5865-D-40-TW-HF-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 5865
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 51
Wired lighting control: ON/OFF
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: prismatic
Installation: suspended
| |
| EV-VL-60-T-L-1680-D-40-TW-DA-OP-9010-38 | 1680 | 2700~6500 | 80 | | DALI | 40 | linear | 600 |
| EV-VL-60-T-L-1680-D-40-TW-DA-OP-9010-38VLinje 38 TEV-VL-60-T-L-1680-D-40-TW-DA-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 1680
Maximum luminous efficacy (lm/W): 112
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 15
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: opal
Installation: suspended
| |
| EV-VL-90-T-L-2415-D-40-TW-DA-OP-9010-38 | 2415 | 2700~6500 | 80 | | DALI | 40 | linear | 900 |
| EV-VL-90-T-L-2415-D-40-TW-DA-OP-9010-38VLinje 38 TEV-VL-90-T-L-2415-D-40-TW-DA-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2415
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 21
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: opal
Installation: suspended
| |
| EV-VL-120-T-L-3220-D-40-TW-DA-OP-9010-38 | 3220 | 2700~6500 | 80 | | DALI | 40 | linear | 1200 |
| EV-VL-120-T-L-3220-D-40-TW-DA-OP-9010-38VLinje 38 TEV-VL-120-T-L-3220-D-40-TW-DA-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3220
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 28
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: opal
Installation: suspended
| |
| EV-VL-150-T-L-4140-D-40-TW-DA-OP-9010-38 | 4140 | 2700~6500 | 80 | | DALI | 40 | linear | 1500 |
| EV-VL-150-T-L-4140-D-40-TW-DA-OP-9010-38VLinje 38 TEV-VL-150-T-L-4140-D-40-TW-DA-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4140
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 36
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: opal
Installation: suspended
| |
| EV-VL-60-T-L-2300-D-40-TW-DA-OP-9010-38 | 2300 | 2700~6500 | 80 | | DALI | 40 | linear | 600 |
| EV-VL-60-T-L-2300-D-40-TW-DA-OP-9010-38VLinje 38 TEV-VL-60-T-L-2300-D-40-TW-DA-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2300
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 20
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: opal
Installation: suspended
| |
| EV-VL-90-T-L-3450-D-40-TW-DA-OP-9010-38 | 3450 | 2700~6500 | 80 | | DALI | 40 | linear | 900 |
| EV-VL-90-T-L-3450-D-40-TW-DA-OP-9010-38VLinje 38 TEV-VL-90-T-L-3450-D-40-TW-DA-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3450
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 30
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: opal
Installation: suspended
| |
| EV-VL-120-T-L-4715-D-40-TW-DA-OP-9010-38 | 4715 | 2700~6500 | 80 | | DALI | 40 | linear | 1200 |
| EV-VL-120-T-L-4715-D-40-TW-DA-OP-9010-38VLinje 38 TEV-VL-120-T-L-4715-D-40-TW-DA-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4715
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 41
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: opal
Installation: suspended
| |
| EV-VL-150-T-L-5865-D-40-TW-DA-OP-9010-38 | 5865 | 2700~6500 | 80 | | DALI | 40 | linear | 1500 |
| EV-VL-150-T-L-5865-D-40-TW-DA-OP-9010-38VLinje 38 TEV-VL-150-T-L-5865-D-40-TW-DA-OP-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 5865
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 51
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: opal
Installation: suspended
| |
| EV-VL-60-T-L-1680-D-40-TW-DA-OP-9005-38 | 1680 | 2700~6500 | 80 | | DALI | 40 | linear | 600 |
| EV-VL-60-T-L-1680-D-40-TW-DA-OP-9005-38VLinje 38 TEV-VL-60-T-L-1680-D-40-TW-DA-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 1680
Maximum luminous efficacy (lm/W): 112
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 15
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: opal
Installation: suspended
| |
| EV-VL-90-T-L-2415-D-40-TW-DA-OP-9005-38 | 2415 | 2700~6500 | 80 | | DALI | 40 | linear | 900 |
| EV-VL-90-T-L-2415-D-40-TW-DA-OP-9005-38VLinje 38 TEV-VL-90-T-L-2415-D-40-TW-DA-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2415
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 21
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: opal
Installation: suspended
| |
| EV-VL-120-T-L-3220-D-40-TW-DA-OP-9005-38 | 3220 | 2700~6500 | 80 | | DALI | 40 | linear | 1200 |
| EV-VL-120-T-L-3220-D-40-TW-DA-OP-9005-38VLinje 38 TEV-VL-120-T-L-3220-D-40-TW-DA-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3220
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 28
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: opal
Installation: suspended
| |
| EV-VL-150-T-L-4140-D-40-TW-DA-OP-9005-38 | 4140 | 2700~6500 | 80 | | DALI | 40 | linear | 1500 |
| EV-VL-150-T-L-4140-D-40-TW-DA-OP-9005-38VLinje 38 TEV-VL-150-T-L-4140-D-40-TW-DA-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4140
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 36
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: opal
Installation: suspended
| |
| EV-VL-60-T-L-2300-D-40-TW-DA-OP-9005-38 | 2300 | 2700~6500 | 80 | | DALI | 40 | linear | 600 |
| EV-VL-60-T-L-2300-D-40-TW-DA-OP-9005-38VLinje 38 TEV-VL-60-T-L-2300-D-40-TW-DA-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2300
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 20
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: opal
Installation: suspended
| |
| EV-VL-90-T-L-3450-D-40-TW-DA-OP-9005-38 | 3450 | 2700~6500 | 80 | | DALI | 40 | linear | 900 |
| EV-VL-90-T-L-3450-D-40-TW-DA-OP-9005-38VLinje 38 TEV-VL-90-T-L-3450-D-40-TW-DA-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3450
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 30
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: opal
Installation: suspended
| |
| EV-VL-120-T-L-4715-D-40-TW-DA-OP-9005-38 | 4715 | 2700~6500 | 80 | | DALI | 40 | linear | 1200 |
| EV-VL-120-T-L-4715-D-40-TW-DA-OP-9005-38VLinje 38 TEV-VL-120-T-L-4715-D-40-TW-DA-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4715
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 41
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: opal
Installation: suspended
| |
| EV-VL-150-T-L-5865-D-40-TW-DA-OP-9005-38 | 5865 | 2700~6500 | 80 | | DALI | 40 | linear | 1500 |
| EV-VL-150-T-L-5865-D-40-TW-DA-OP-9005-38VLinje 38 TEV-VL-150-T-L-5865-D-40-TW-DA-OP-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 5865
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 51
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: opal
Installation: suspended
| |
| EV-VL-60-T-L-1680-D-40-TW-DA-OP-7000-38 | 1680 | 2700~6500 | 80 | | DALI | 40 | linear | 600 |
| EV-VL-60-T-L-1680-D-40-TW-DA-OP-7000-38VLinje 38 TEV-VL-60-T-L-1680-D-40-TW-DA-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 1680
Maximum luminous efficacy (lm/W): 112
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 15
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: opal
Installation: suspended
| |
| EV-VL-90-T-L-2415-D-40-TW-DA-OP-7000-38 | 2415 | 2700~6500 | 80 | | DALI | 40 | linear | 900 |
| EV-VL-90-T-L-2415-D-40-TW-DA-OP-7000-38VLinje 38 TEV-VL-90-T-L-2415-D-40-TW-DA-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2415
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 21
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: opal
Installation: suspended
| |
| EV-VL-120-T-L-3220-D-40-TW-DA-OP-7000-38 | 3220 | 2700~6500 | 80 | | DALI | 40 | linear | 1200 |
| EV-VL-120-T-L-3220-D-40-TW-DA-OP-7000-38VLinje 38 TEV-VL-120-T-L-3220-D-40-TW-DA-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3220
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 28
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: opal
Installation: suspended
| |
| EV-VL-150-T-L-4140-D-40-TW-DA-OP-7000-38 | 4140 | 2700~6500 | 80 | | DALI | 40 | linear | 1500 |
| EV-VL-150-T-L-4140-D-40-TW-DA-OP-7000-38VLinje 38 TEV-VL-150-T-L-4140-D-40-TW-DA-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4140
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 36
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: opal
Installation: suspended
| |
| EV-VL-60-T-L-2300-D-40-TW-DA-OP-7000-38 | 2300 | 2700~6500 | 80 | | DALI | 40 | linear | 600 |
| EV-VL-60-T-L-2300-D-40-TW-DA-OP-7000-38VLinje 38 TEV-VL-60-T-L-2300-D-40-TW-DA-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2300
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 20
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: opal
Installation: suspended
| |
| EV-VL-90-T-L-3450-D-40-TW-DA-OP-7000-38 | 3450 | 2700~6500 | 80 | | DALI | 40 | linear | 900 |
| EV-VL-90-T-L-3450-D-40-TW-DA-OP-7000-38VLinje 38 TEV-VL-90-T-L-3450-D-40-TW-DA-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3450
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 30
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: opal
Installation: suspended
| |
| EV-VL-120-T-L-4715-D-40-TW-DA-OP-7000-38 | 4715 | 2700~6500 | 80 | | DALI | 40 | linear | 1200 |
| EV-VL-120-T-L-4715-D-40-TW-DA-OP-7000-38VLinje 38 TEV-VL-120-T-L-4715-D-40-TW-DA-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4715
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 41
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: opal
Installation: suspended
| |
| EV-VL-150-T-L-5865-D-40-TW-DA-OP-7000-38 | 5865 | 2700~6500 | 80 | | DALI | 40 | linear | 1500 |
| EV-VL-150-T-L-5865-D-40-TW-DA-OP-7000-38VLinje 38 TEV-VL-150-T-L-5865-D-40-TW-DA-OP-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 5865
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 51
Wired lighting control: DALI
IP Code: 40
Diffuser material: polycarbonate
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: opal
Installation: suspended
| |
| EV-VL-60-T-L-1680-D-40-TW-DA-PR-9010-38 | 1680 | 2700~6500 | 80 | | DALI | 40 | linear | 600 |
| EV-VL-60-T-L-1680-D-40-TW-DA-PR-9010-38VLinje 38 TEV-VL-60-T-L-1680-D-40-TW-DA-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 1680
Maximum luminous efficacy (lm/W): 112
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 15
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: prismatic
Installation: suspended
| |
| EV-VL-90-T-L-2415-D-40-TW-DA-PR-9010-38 | 2415 | 2700~6500 | 80 | | DALI | 40 | linear | 900 |
| EV-VL-90-T-L-2415-D-40-TW-DA-PR-9010-38VLinje 38 TEV-VL-90-T-L-2415-D-40-TW-DA-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2415
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 21
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: prismatic
Installation: suspended
| |
| EV-VL-120-T-L-3220-D-40-TW-DA-PR-9010-38 | 3220 | 2700~6500 | 80 | | DALI | 40 | linear | 1200 |
| EV-VL-120-T-L-3220-D-40-TW-DA-PR-9010-38VLinje 38 TEV-VL-120-T-L-3220-D-40-TW-DA-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3220
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 28
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: prismatic
Installation: suspended
| |
| EV-VL-150-T-L-4140-D-40-TW-DA-PR-9010-38 | 4140 | 2700~6500 | 80 | | DALI | 40 | linear | 1500 |
| EV-VL-150-T-L-4140-D-40-TW-DA-PR-9010-38VLinje 38 TEV-VL-150-T-L-4140-D-40-TW-DA-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4140
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 36
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: prismatic
Installation: suspended
| |
| EV-VL-60-T-L-2300-D-40-TW-DA-PR-9010-38 | 2300 | 2700~6500 | 80 | | DALI | 40 | linear | 600 |
| EV-VL-60-T-L-2300-D-40-TW-DA-PR-9010-38VLinje 38 TEV-VL-60-T-L-2300-D-40-TW-DA-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2300
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 20
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: prismatic
Installation: suspended
| |
| EV-VL-90-T-L-3450-D-40-TW-DA-PR-9010-38 | 3450 | 2700~6500 | 80 | | DALI | 40 | linear | 900 |
| EV-VL-90-T-L-3450-D-40-TW-DA-PR-9010-38VLinje 38 TEV-VL-90-T-L-3450-D-40-TW-DA-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3450
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 30
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: prismatic
Installation: suspended
| |
| EV-VL-120-T-L-4715-D-40-TW-DA-PR-9010-38 | 4715 | 2700~6500 | 80 | | DALI | 40 | linear | 1200 |
| EV-VL-120-T-L-4715-D-40-TW-DA-PR-9010-38VLinje 38 TEV-VL-120-T-L-4715-D-40-TW-DA-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4715
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 41
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: prismatic
Installation: suspended
| |
| EV-VL-150-T-L-5865-D-40-TW-DA-PR-9010-38 | 5865 | 2700~6500 | 80 | | DALI | 40 | linear | 1500 |
| EV-VL-150-T-L-5865-D-40-TW-DA-PR-9010-38VLinje 38 TEV-VL-150-T-L-5865-D-40-TW-DA-PR-9010-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 5865
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 51
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: prismatic
Installation: suspended
| |
| EV-VL-60-T-L-1680-D-40-TW-DA-PR-9005-38 | 1680 | 2700~6500 | 80 | | DALI | 40 | linear | 600 |
| EV-VL-60-T-L-1680-D-40-TW-DA-PR-9005-38VLinje 38 TEV-VL-60-T-L-1680-D-40-TW-DA-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 1680
Maximum luminous efficacy (lm/W): 112
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 15
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: prismatic
Installation: suspended
| |
| EV-VL-90-T-L-2415-D-40-TW-DA-PR-9005-38 | 2415 | 2700~6500 | 80 | | DALI | 40 | linear | 900 |
| EV-VL-90-T-L-2415-D-40-TW-DA-PR-9005-38VLinje 38 TEV-VL-90-T-L-2415-D-40-TW-DA-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2415
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 21
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: prismatic
Installation: suspended
| |
| EV-VL-120-T-L-3220-D-40-TW-DA-PR-9005-38 | 3220 | 2700~6500 | 80 | | DALI | 40 | linear | 1200 |
| EV-VL-120-T-L-3220-D-40-TW-DA-PR-9005-38VLinje 38 TEV-VL-120-T-L-3220-D-40-TW-DA-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3220
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 28
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: prismatic
Installation: suspended
| |
| EV-VL-150-T-L-4140-D-40-TW-DA-PR-9005-38 | 4140 | 2700~6500 | 80 | | DALI | 40 | linear | 1500 |
| EV-VL-150-T-L-4140-D-40-TW-DA-PR-9005-38VLinje 38 TEV-VL-150-T-L-4140-D-40-TW-DA-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4140
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 36
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: prismatic
Installation: suspended
| |
| EV-VL-60-T-L-2300-D-40-TW-DA-PR-9005-38 | 2300 | 2700~6500 | 80 | | DALI | 40 | linear | 600 |
| EV-VL-60-T-L-2300-D-40-TW-DA-PR-9005-38VLinje 38 TEV-VL-60-T-L-2300-D-40-TW-DA-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2300
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 20
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: prismatic
Installation: suspended
| |
| EV-VL-90-T-L-3450-D-40-TW-DA-PR-9005-38 | 3450 | 2700~6500 | 80 | | DALI | 40 | linear | 900 |
| EV-VL-90-T-L-3450-D-40-TW-DA-PR-9005-38VLinje 38 TEV-VL-90-T-L-3450-D-40-TW-DA-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3450
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 30
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: prismatic
Installation: suspended
| |
| EV-VL-120-T-L-4715-D-40-TW-DA-PR-9005-38 | 4715 | 2700~6500 | 80 | | DALI | 40 | linear | 1200 |
| EV-VL-120-T-L-4715-D-40-TW-DA-PR-9005-38VLinje 38 TEV-VL-120-T-L-4715-D-40-TW-DA-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4715
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 41
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: prismatic
Installation: suspended
| |
| EV-VL-150-T-L-5865-D-40-TW-DA-PR-9005-38 | 5865 | 2700~6500 | 80 | | DALI | 40 | linear | 1500 |
| EV-VL-150-T-L-5865-D-40-TW-DA-PR-9005-38VLinje 38 TEV-VL-150-T-L-5865-D-40-TW-DA-PR-9005-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 5865
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 51
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: prismatic
Installation: suspended
| |
| EV-VL-60-T-L-1680-D-40-TW-DA-PR-7000-38 | 1680 | 2700~6500 | 80 | | DALI | 40 | linear | 600 |
| EV-VL-60-T-L-1680-D-40-TW-DA-PR-7000-38VLinje 38 TEV-VL-60-T-L-1680-D-40-TW-DA-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 1680
Maximum luminous efficacy (lm/W): 112
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 15
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: prismatic
Installation: suspended
| |
| EV-VL-90-T-L-2415-D-40-TW-DA-PR-7000-38 | 2415 | 2700~6500 | 80 | | DALI | 40 | linear | 900 |
| EV-VL-90-T-L-2415-D-40-TW-DA-PR-7000-38VLinje 38 TEV-VL-90-T-L-2415-D-40-TW-DA-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2415
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 21
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: prismatic
Installation: suspended
| |
| EV-VL-120-T-L-3220-D-40-TW-DA-PR-7000-38 | 3220 | 2700~6500 | 80 | | DALI | 40 | linear | 1200 |
| EV-VL-120-T-L-3220-D-40-TW-DA-PR-7000-38VLinje 38 TEV-VL-120-T-L-3220-D-40-TW-DA-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3220
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 28
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: prismatic
Installation: suspended
| |
| EV-VL-150-T-L-4140-D-40-TW-DA-PR-7000-38 | 4140 | 2700~6500 | 80 | | DALI | 40 | linear | 1500 |
| EV-VL-150-T-L-4140-D-40-TW-DA-PR-7000-38VLinje 38 TEV-VL-150-T-L-4140-D-40-TW-DA-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4140
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 36
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: prismatic
Installation: suspended
| |
| EV-VL-60-T-L-2300-D-40-TW-DA-PR-7000-38 | 2300 | 2700~6500 | 80 | | DALI | 40 | linear | 600 |
| EV-VL-60-T-L-2300-D-40-TW-DA-PR-7000-38VLinje 38 TEV-VL-60-T-L-2300-D-40-TW-DA-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 2300
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 20
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 600
Height (mm): 56
Weight (kg): 1.25
Optics: prismatic
Installation: suspended
| |
| EV-VL-90-T-L-3450-D-40-TW-DA-PR-7000-38 | 3450 | 2700~6500 | 80 | | DALI | 40 | linear | 900 |
| EV-VL-90-T-L-3450-D-40-TW-DA-PR-7000-38VLinje 38 TEV-VL-90-T-L-3450-D-40-TW-DA-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 3450
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 30
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 900
Height (mm): 56
Weight (kg): 1.5
Optics: prismatic
Installation: suspended
| |
| EV-VL-120-T-L-4715-D-40-TW-DA-PR-7000-38 | 4715 | 2700~6500 | 80 | | DALI | 40 | linear | 1200 |
| EV-VL-120-T-L-4715-D-40-TW-DA-PR-7000-38VLinje 38 TEV-VL-120-T-L-4715-D-40-TW-DA-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4715
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 41
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1200
Height (mm): 56
Weight (kg): 1.85
Optics: prismatic
Installation: suspended
| |
| EV-VL-150-T-L-5865-D-40-TW-DA-PR-7000-38 | 5865 | 2700~6500 | 80 | | DALI | 40 | linear | 1500 |
| EV-VL-150-T-L-5865-D-40-TW-DA-PR-7000-38VLinje 38 TEV-VL-150-T-L-5865-D-40-TW-DA-PR-7000-38VLinje 38 Tr
r
The VLinje 38 T is a slim LED luminaire with a powder-coated aluminium extruded body. It features a PC opal diffuser with optional PMMA clear prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours. Operating on 220u2013240V within an ambient temperature range of ?20u00b0C to +35u00b0C, it is ideal for offices, supermarkets, educational facilities, and corridors. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 5865
Maximum luminous efficacy (lm/W): 115
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80
Median useful life: 50.000 Hours
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 51
Wired lighting control: DALI
IP Code: 40
Diffuser material: PMMA
Luminaire shape: linear
Permissible ambient temperature range: -20C - +35C
Width (mm): 42
Length (mm): 1500
Height (mm): 56
Weight (kg): 2.2
Optics: prismatic
Installation: suspended
| |
