| Product code | Luminous flux (lm) | Correlated color temperature (K) | Color rendering index (CRI) | Unified glare rating (UGR) | Wired lighting control | IP Code | Luminaire shape | Length (mm) | | Info | Add |
|---|

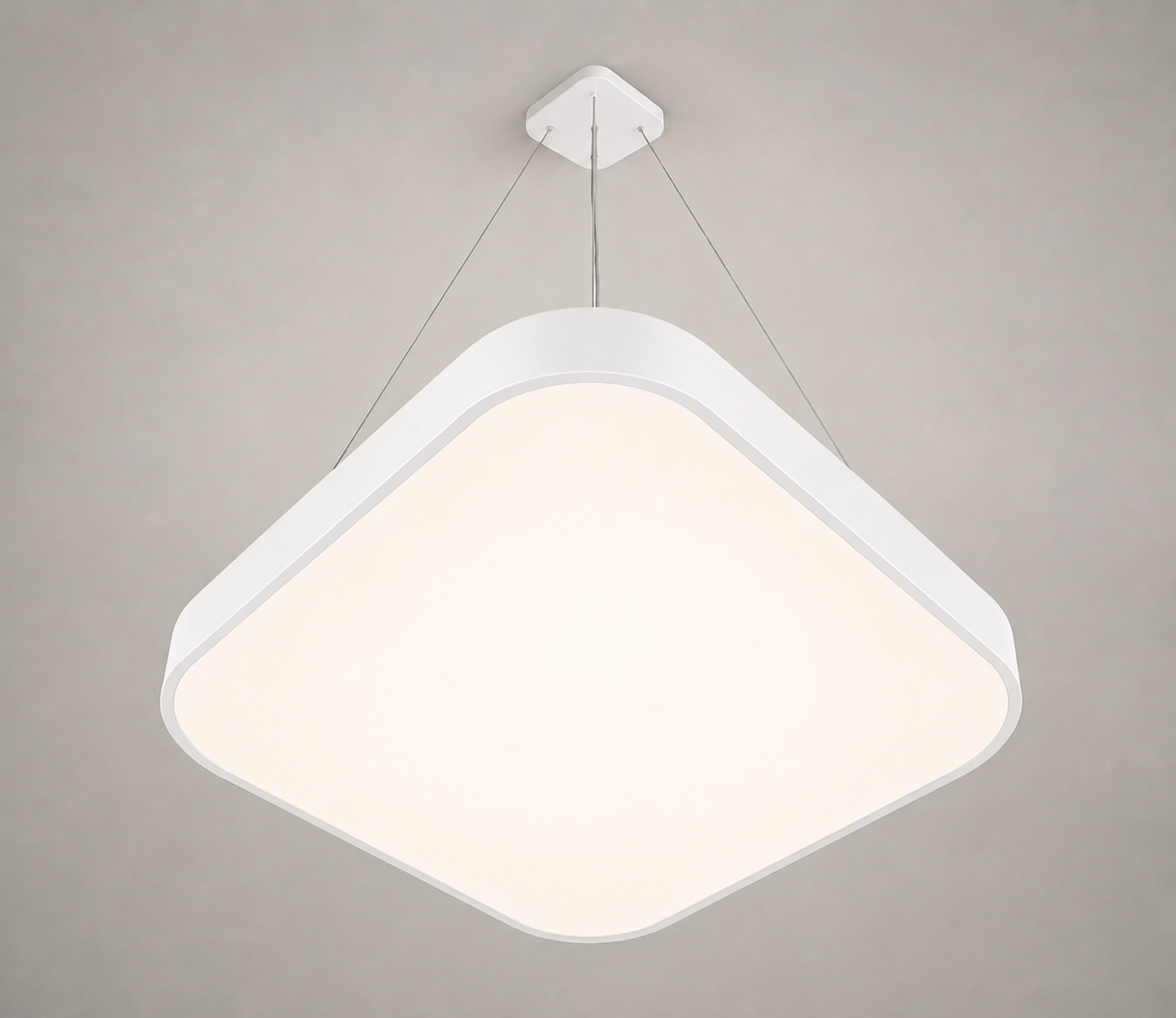

| EV-TR-600-T-432-D-40-TW-HF-OP-9010 | 4320 | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 600 |
| EV-TR-600-T-432-D-40-TW-HF-OP-9010Square Tromme 80 TEV-TR-600-T-432-D-40-TW-HF-OP-9010 The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: opal
Installation: suspended
| |
| EV-TR-900-T-762-D-40-TW-HF-OP-9010 | 7620 | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 900 |
| EV-TR-900-T-762-D-40-TW-HF-OP-9010Square Tromme 80 TEV-TR-900-T-762-D-40-TW-HF-OP-9010The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: opal
Installation: suspended
| |
| EV-TR-600-T-432-D-40-TW-HF-OP-9010 | 4320 | 2700~6500 | 80+ | | DALI | IP 40 | square | 600 |
| EV-TR-600-T-432-D-40-TW-HF-OP-9010Square Tromme 80 TEV-TR-600-T-432-D-40-TW-HF-OP-9010The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: opal
Installation: suspended
| |
| EV-TR-900-T-762-D-40-TW-HF-OP-9010 | 7620 | 2700~6500 | 80+ | | DALI | IP 40 | square | 900 |
| EV-TR-900-T-762-D-40-TW-HF-OP-9010Square Tromme 80 TEV-TR-900-T-762-D-40-TW-HF-OP-9010The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: opal
Installation: suspended
| |

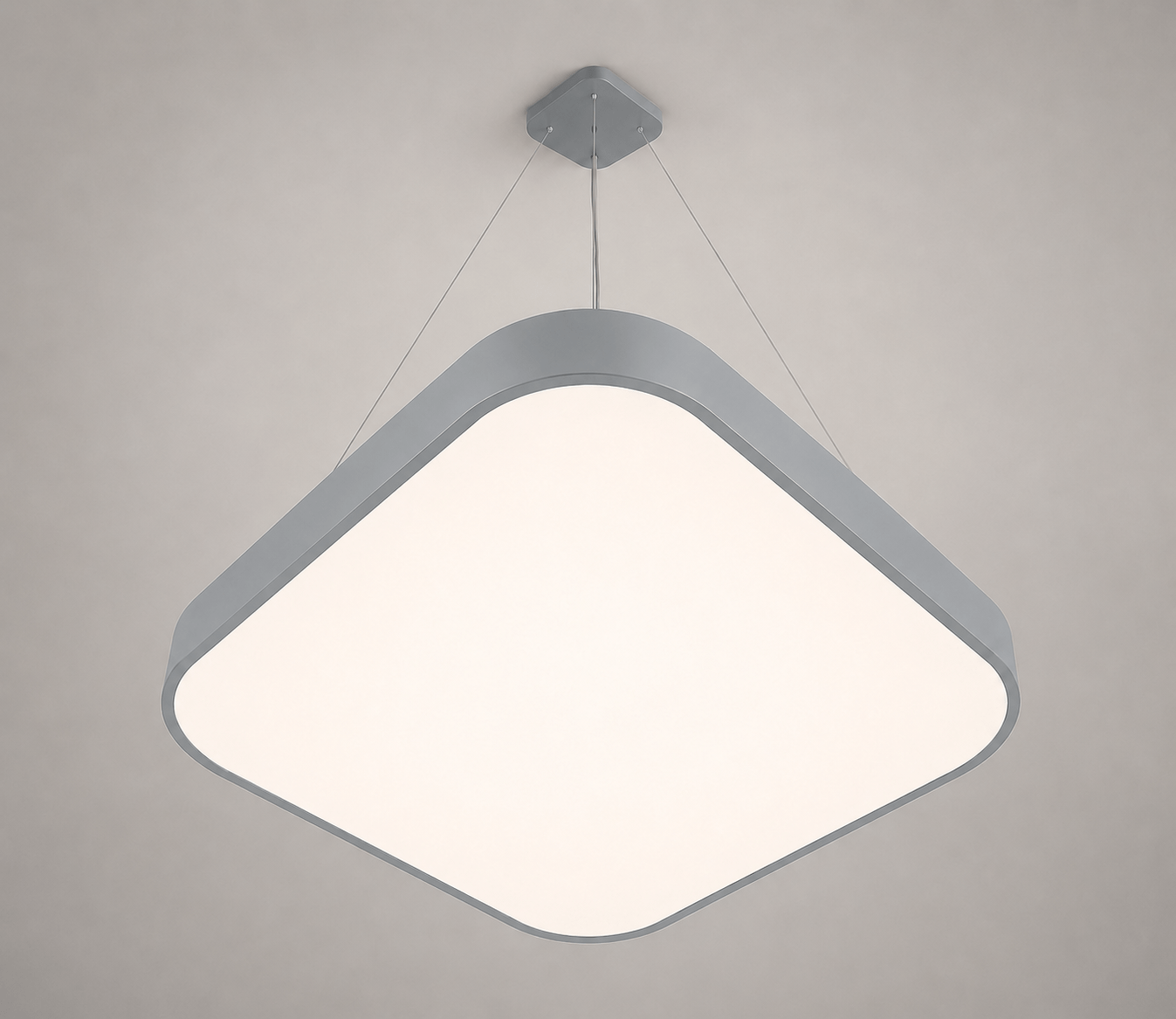

| EV-TR-600-T-432-D-40-TW-HF-OP-7000 | 4320 | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 600 |
| EV-TR-600-T-432-D-40-TW-HF-OP-7000Square Tromme 80 TEV-TR-600-T-432-D-40-TW-HF-OP-7000The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: opal
Installation: suspended
| |
| EV-TR-900-T-762-D-40-TW-HF-OP-7000 | 7620 | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 900 |
| EV-TR-900-T-762-D-40-TW-HF-OP-7000Square Tromme 80 TEV-TR-900-T-762-D-40-TW-HF-OP-7000The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: opal
Installation: suspended
| |
| EV-TR-600-T-432-D-40-TW-HF-OP-7000 | 4320 | 2700~6500 | 80+ | | DALI | IP 40 | square | 600 |
| EV-TR-600-T-432-D-40-TW-HF-OP-7000Square Tromme 80 TEV-TR-600-T-432-D-40-TW-HF-OP-7000The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: opal
Installation: suspended
| |
| EV-TR-900-T-762-D-40-TW-HF-OP-7000 | 7620 | 2700~6500 | 80+ | | DALI | IP 40 | square | 900 |
| EV-TR-900-T-762-D-40-TW-HF-OP-7000Square Tromme 80 TEV-TR-900-T-762-D-40-TW-HF-OP-7000The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: opal
Installation: suspended
| |
| EV-TR-600-T-432-D-40-TW-HF-OP-9005 | 4320 | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 600 |
| EV-TR-600-T-432-D-40-TW-HF-OP-9005Square Tromme 80 TEV-TR-600-T-432-D-40-TW-HF-OP-9005The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: opal
Installation: suspended
| |
| EV-TR-900-T-762-D-40-TW-HF-OP-9005 | 7620 | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 900 |
| EV-TR-900-T-762-D-40-TW-HF-OP-9005Square Tromme 80 TEV-TR-900-T-762-D-40-TW-HF-OP-9005The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: opal
Installation: suspended
| |
| EV-TR-600-T-432-D-40-TW-HF-OP-9005 | 4320 | 2700~6500 | 80+ | | DALI | IP 40 | square | 600 |
| EV-TR-600-T-432-D-40-TW-HF-OP-9005Square Tromme 80 TEV-TR-600-T-432-D-40-TW-HF-OP-9005The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: opal
Installation: suspended
| |
| EV-TR-900-T-762-D-40-TW-HF-OP-9005 | 7620 | 2700~6500 | 80+ | | DALI | IP 40 | square | 900 |
| EV-TR-900-T-762-D-40-TW-HF-OP-9005Square Tromme 80 TEV-TR-900-T-762-D-40-TW-HF-OP-9005The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: opal
Installation: suspended
| |
| EV-TR-600-T-432-D-40-TW-HF-PR-9010 | 4320 | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 600 |
| EV-TR-600-T-432-D-40-TW-HF-PR-9010Square Tromme 80 TEV-TR-600-T-432-D-40-TW-HF-PR-9010The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: prismatic
Installation: suspended
| |
| EV-TR-900-T-762-D-40-TW-HF-PR-9010 | 7620 | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 900 |
| EV-TR-900-T-762-D-40-TW-HF-PR-9010Square Tromme 80 TEV-TR-900-T-762-D-40-TW-HF-PR-9010The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: prismatic
Installation: suspended
| |
| EV-TR-600-T-432-D-40-TW-HF-PR-9010 | 4320 | 2700~6500 | 80+ | | DALI | IP 40 | square | 600 |
| EV-TR-600-T-432-D-40-TW-HF-PR-9010Square Tromme 80 TEV-TR-600-T-432-D-40-TW-HF-PR-9010The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: prismatic
Installation: suspended
| |
| EV-TR-900-T-762-D-40-TW-HF-PR-9010 | 7620 | 2700~6500 | 80+ | | DALI | IP 40 | square | 900 |
| EV-TR-900-T-762-D-40-TW-HF-PR-9010Square Tromme 80 TEV-TR-900-T-762-D-40-TW-HF-PR-9010The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: white
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: prismatic
Installation: suspended
| |
| EV-TR-600-T-432-D-40-TW-HF-PR-7000 | 4320 | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 600 |
| EV-TR-600-T-432-D-40-TW-HF-PR-7000Square Tromme 80 TEV-TR-600-T-432-D-40-TW-HF-PR-7000The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: prismatic
Installation: suspended
| |
| EV-TR-900-T-762-D-40-TW-HF-PR-7000 | 7620 | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 900 |
| EV-TR-900-T-762-D-40-TW-HF-PR-7000Square Tromme 80 TEV-TR-900-T-762-D-40-TW-HF-PR-7000The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: prismatic
Installation: suspended
| |
| EV-TR-600-T-432-D-40-TW-HF-PR-7000 | 4320 | 2700~6500 | 80+ | | DALI | IP 40 | square | 600 |
| EV-TR-600-T-432-D-40-TW-HF-PR-7000Square Tromme 80 TEV-TR-600-T-432-D-40-TW-HF-PR-7000The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: prismatic
Installation: suspended
| |
| EV-TR-900-T-762-D-40-TW-HF-PR-7000 | 7620 | 2700~6500 | 80+ | | DALI | IP 40 | square | 900 |
| EV-TR-900-T-762-D-40-TW-HF-PR-7000Square Tromme 80 TEV-TR-900-T-762-D-40-TW-HF-PR-7000The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: grey
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: prismatic
Installation: suspended
| |
| EV-TR-600-T-432-D-40-TW-HF-PR-9005 | 4320 | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 600 |
| EV-TR-600-T-432-D-40-TW-HF-PR-9005Square Tromme 80 TEV-TR-600-T-432-D-40-TW-HF-PR-9005The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: prismatic
Installation: suspended
| |
| EV-TR-900-T-762-D-40-TW-HF-PR-9005 | 7620 | 2700~6500 | 80+ | | ON/OFF | IP 40 | square | 900 |
| EV-TR-900-T-762-D-40-TW-HF-PR-9005Square Tromme 80 TEV-TR-900-T-762-D-40-TW-HF-PR-9005The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: ON/OFF
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: prismatic
Installation: suspended
| |
| EV-TR-600-T-432-D-40-TW-HF-PR-9005 | 4320 | 2700~6500 | 80+ | | DALI | IP 40 | square | 600 |
| EV-TR-600-T-432-D-40-TW-HF-PR-9005Square Tromme 80 TEV-TR-600-T-432-D-40-TW-HF-PR-9005The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 4320
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 34
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 600
Length (mm): 600
Height (mm): 82
Weight (kg): 5.9
Optics: prismatic
Installation: suspended
| |
| EV-TR-900-T-762-D-40-TW-HF-PR-9005 | 7620 | 2700~6500 | 80+ | | DALI | IP 40 | square | 900 |
| EV-TR-900-T-762-D-40-TW-HF-PR-9005Square Tromme 80 TEV-TR-900-T-762-D-40-TW-HF-PR-9005The SQUARE DRUM 80 T is a compact LED luminaire with a powder-coated aluminium extruded body and steel back cover. It features a PMMA opal diffuser with optional prismatic versions and uses mid-power LEDs with a lifetime exceeding 50,000 hours (L80/B10). Operating on 220u2013240V within an ambient temperature range of u221220u00b0C to +35u00b0C, it supports optional CASAMBI, Easy-Air Sensor, and DALI Sensor controls. Suitable for offices, shops and stores, educational facilities, and architectural applications. Luminaire type: surface and suspended
Mounting type: suspended
Mounting location: ceiling
Luminous flux (lm): 7620
Maximum luminous efficacy (lm/W): 125+
Correlated color temperature (K): 2700~6500
Color rendering index (CRI): 80+
Median useful life: 50000H
Luminous intensity distribution direction: Direct
Colour: black
Voltage (V AC): 220-240
Power (W): 60
Wired lighting control: DALI
IP Code: IP 40
Diffuser material: PMMA
Luminaire shape: square
Permissible ambient temperature range: -55
Width (mm): 900
Length (mm): 900
Height (mm): 82
Weight (kg): 8.8
Optics: prismatic
Installation: suspended
| |
